• ARMv7-M architecture 32bit Cortex-M4 CPU, integrated FPU, MPU, DSP, the highest work main frequency is 200MHz, 512KByte Flash
• Support UHF EPC Class1 Gen2/ISO 18000-6C
• Provide Windows，Linux and Android SDK, and API based on C, C#/.NET, JAVA
• Support inventory of temperature tags, the output parameters include the RSSI and phase value of the tag return signal
• 16-port antenna polling output, the shortest polling time is less than 25mS
• Domestic version with max power output of 33dBm
• Certified version with max power output of 30dBm
• SIMX400 has excellent anti-collision algorithm and high sensitivity. The fastest speed of inventory tags is greater than 1000 tag/s
• Multiple inventory modes suitable for most applications
• The UART serial communication baud rate can be set from 9600bp to 921600bps
• 2 input 2 output GPIO
• Onboard temperature real-time monitoring, combined with aluminum shell heat dissipation, ensures that the module can work stably for long time.
• Size: 181.5mm*80.3mm*8mm
• Antenna connection status monitoring, real-time protection of the receiver.
• Obtained SRRC, CE, FCC and other certifications
• Comply with ROHS requirements

Filing Cabinets and Tool Cabinets Management:
In enterprises or institutions, strict permission control and records are often required for accessing important documents and tools. By integrating the RFID SIM X400 reader module into filing cabinets and tool cabinets, automated asset identification and management can be achieved. Employees only need to swipe their cards or enter passwords to open the cabinet doors, and the system will automatically record information such as the time, personnel, and items taken for each opening, thereby improving security and reducing human errors. Additionally, this module supports batch reading functions, making inventory work more efficient and fast, especially suitable for scenarios with frequent borrowing and returning of tool management and confidential document storage.

Application of Intelligent Shelves:
The intelligent shelf is an important part of the intelligent transformation of the modern retail industry. Based on collected data, the system can also analyze consumer purchasing behaviors, push personalized promotional information for them, optimize store layouts, and then increase sales volume and service quality. This technology is not only suitable for retail places such as supermarkets and convenience stores but also shows great potential in fields like pharmaceutical warehousing.

Operation of Vending Machines:
With the development of the unmanned retail concept, more and more vending machines have begun to adopt advanced technological means to improve user experience. For example, vending machines equipped with built-in RFID SIM X400 reader modules can complete transaction processes by scanning QR codes or other payment vouchers on consumers' mobile phones, which greatly improves checkout speed without manual intervention throughout the whole process.

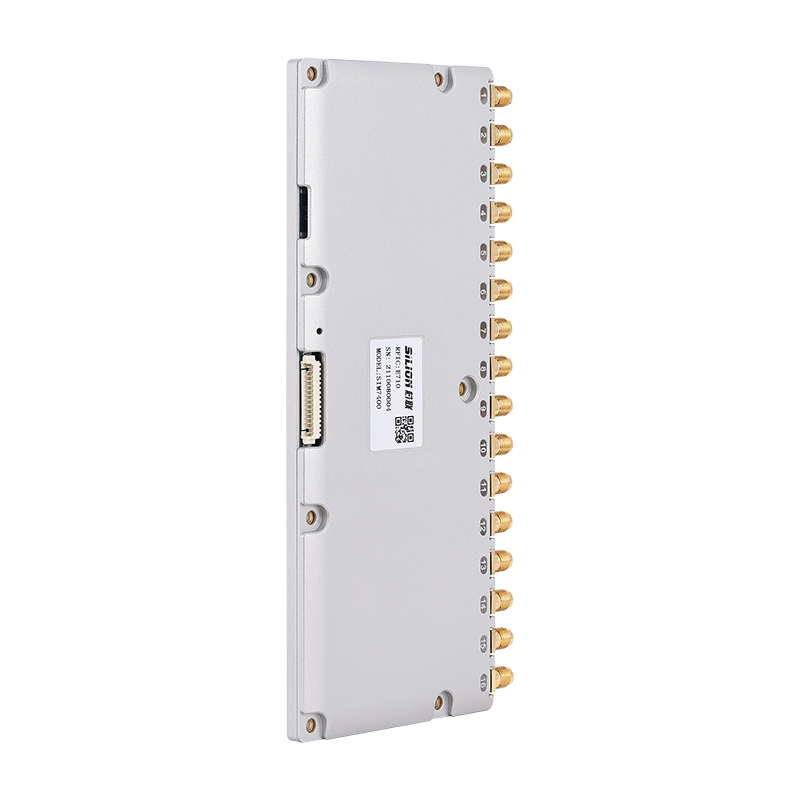

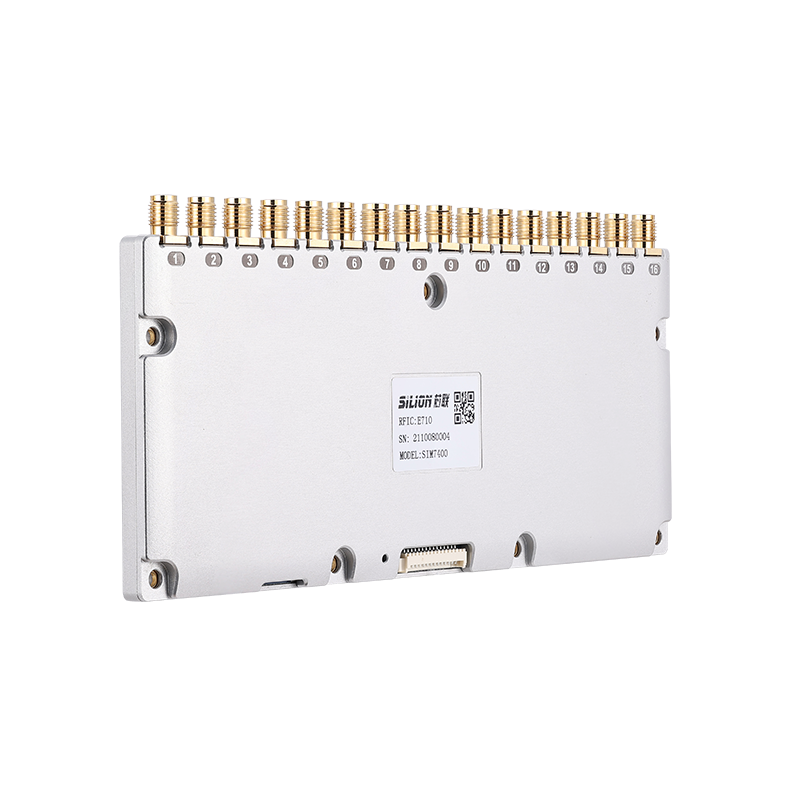

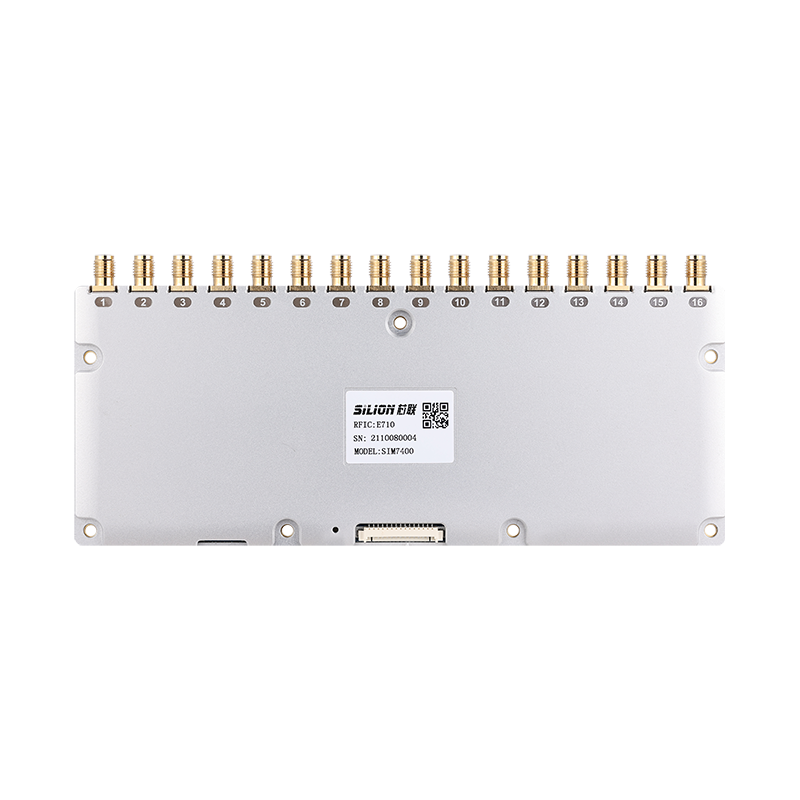

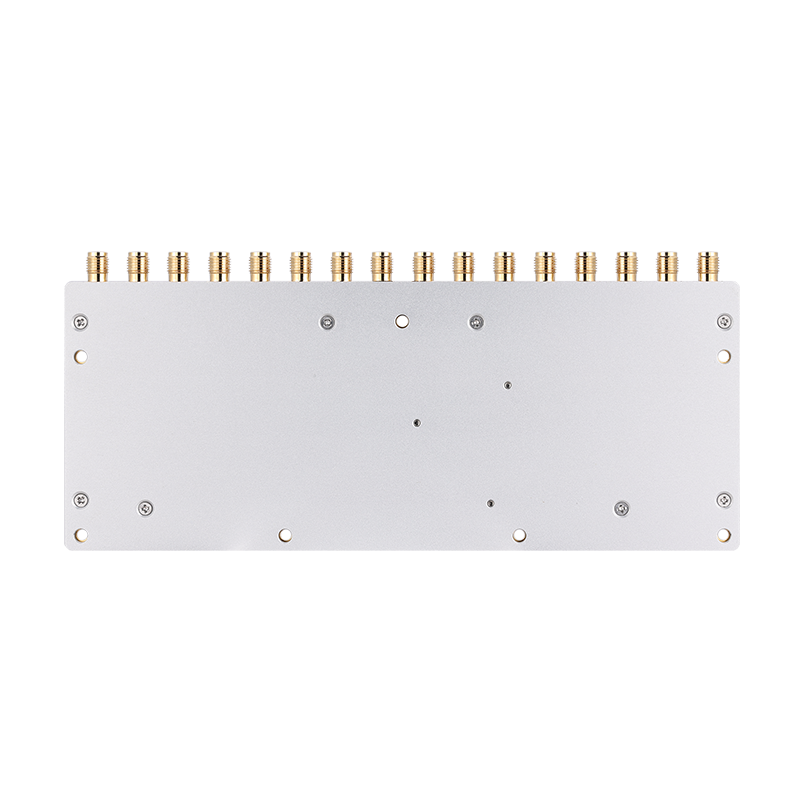

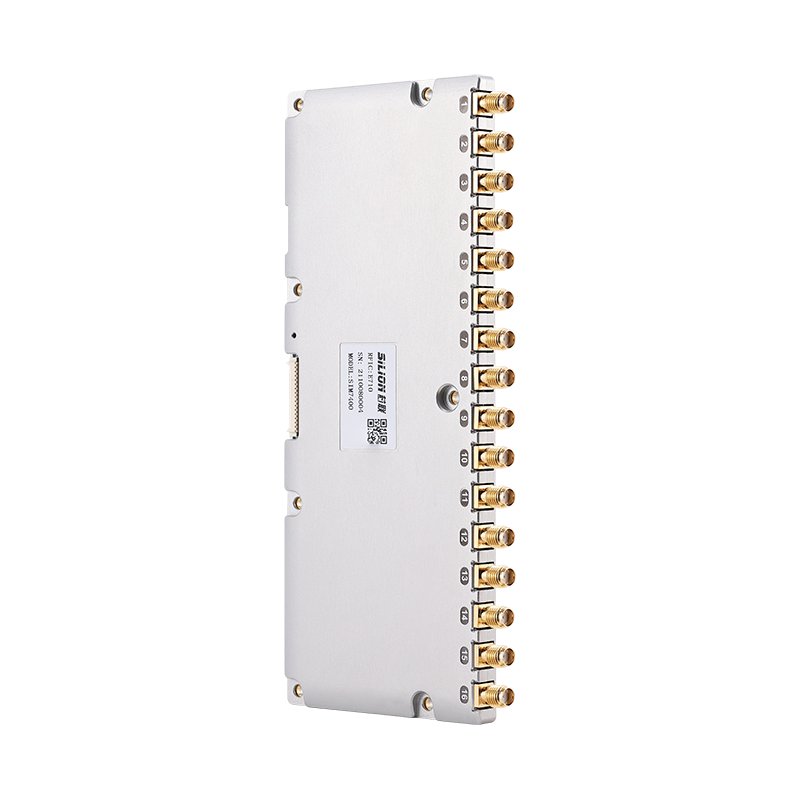

SIMX400 UHF RFID reader module Featuring robust interference resistance and multiple configuration modes, ideal for cabinets, warehouses, logistics etc.

If needed, we can also provide the Complete Open Source Development Board and antenna to match the module.

Contact us to know more details.

• Payment Method : TT , Paypal, and Irrevocable L/C at sight
• Port Of Shipment : Nanning Shenzhen Guangzhou China
• Delivery Detail : Delivery time depends on the order quantity
