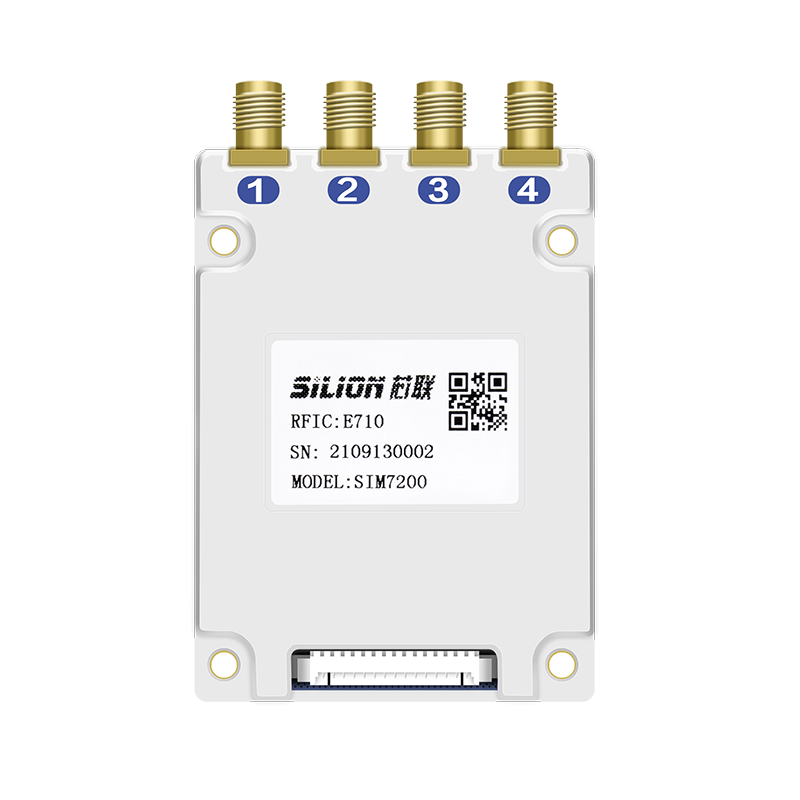

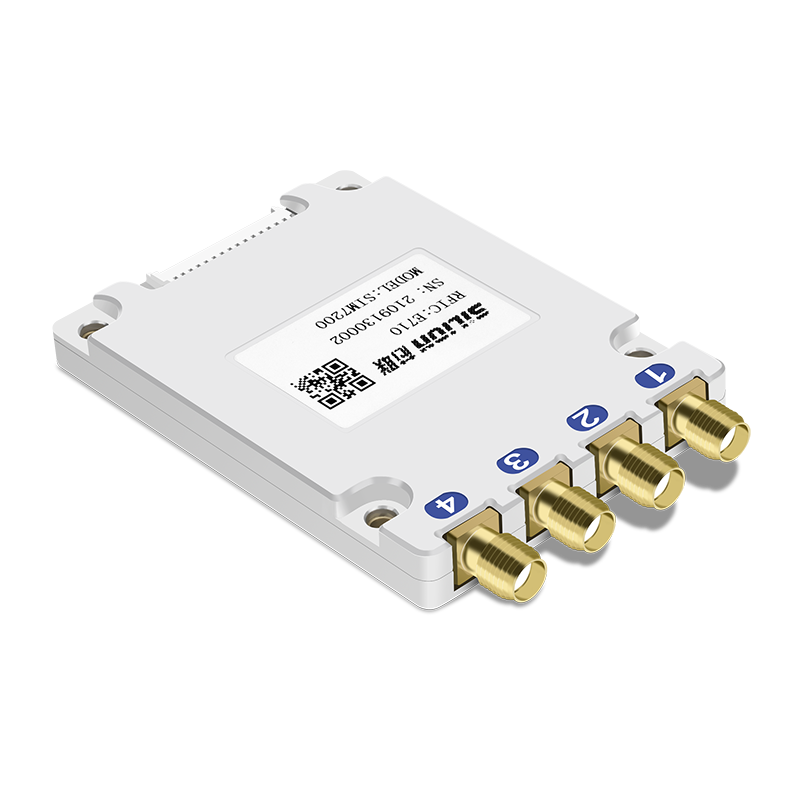

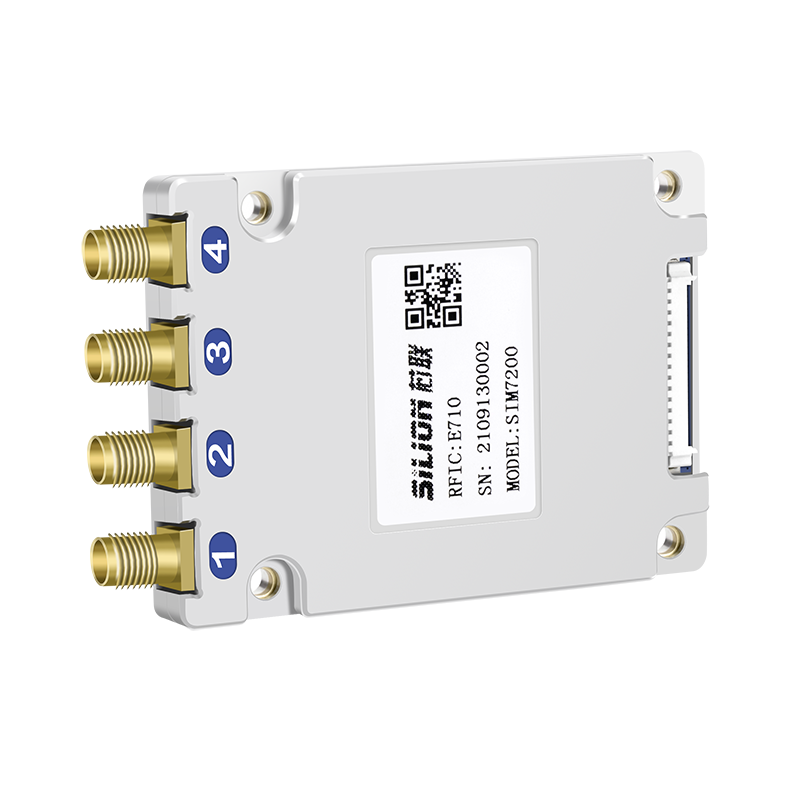

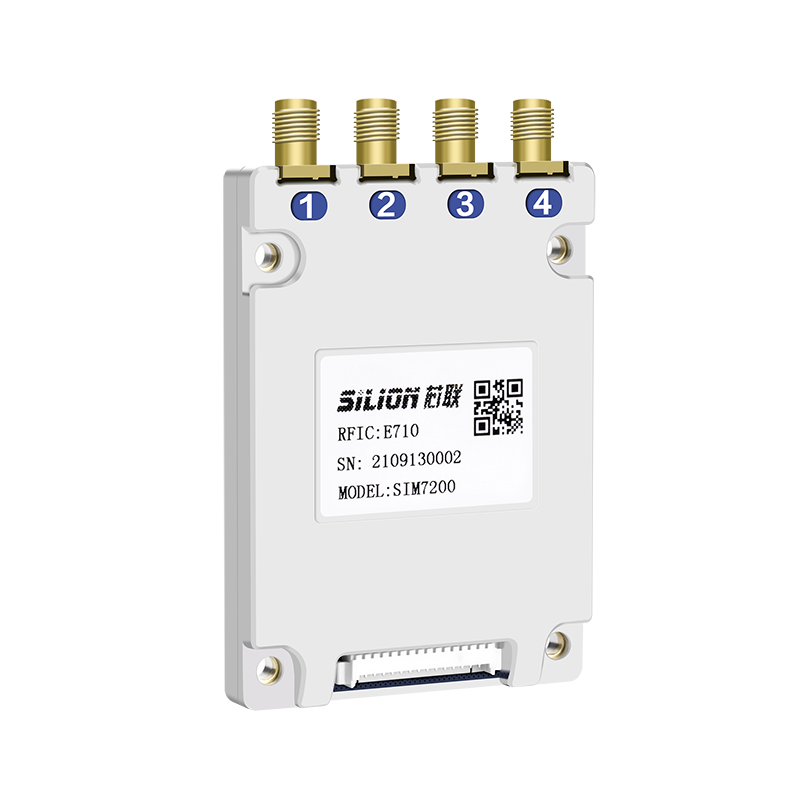

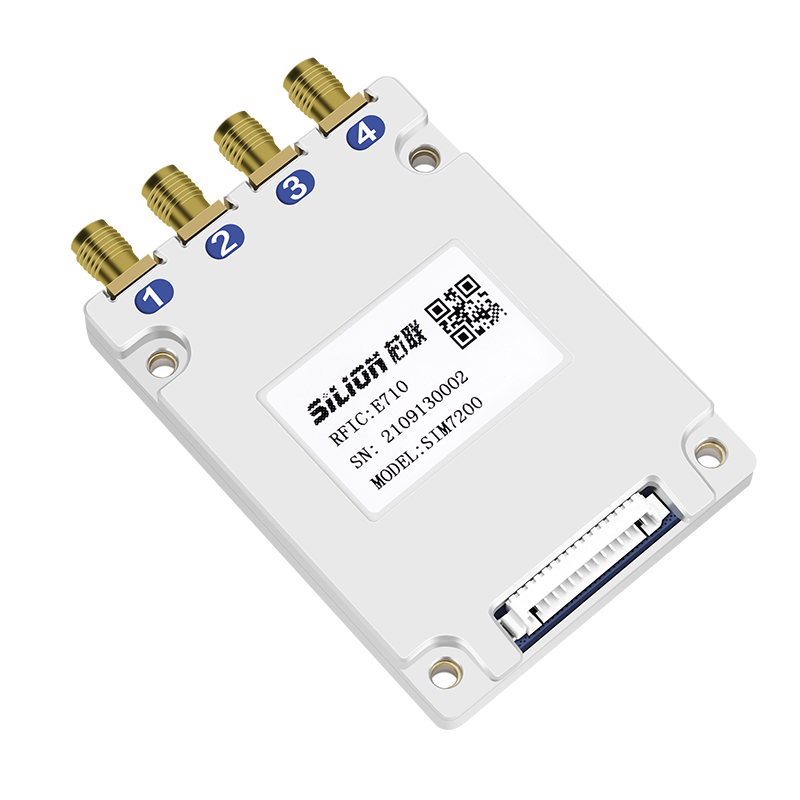

UHF SIM7200,5200,3200 Module
Short Description:
The high-performance UHF 4-port RFID module SIM7200, 5200, 3200 is built upon Impinj's chips E710/E510/E310. It offers adjustable output power from 5dBm to 33dBm (default 30dBm), enabling reading distances exceeding 12 meters (dependent on antenna gain and tag size) with exceptional multi-tag inventory capabilities. Leveraging advanced anti-collision algorithms, the module rapidly identifies tags whether in motion or stationary, while superior anti-interference design and carrier cancellation ensure stable operation in complex environments. Featuring versatile configuration modes and communication interfaces, it delivers reliable performance across applications including warehouse inventory management, logistics tracking, production line automation, and patrol systems—empowering businesses with efficient IoT solutions.
Characteristic
Physical
| Size | 74.8mm x 48.5mm x 8mm |
| Weight | 56 g |
| Connector material | Brass gold plated |
| PCB | FR4 gold plated |
| Shield material | Aluminum Alloy |
RF Parameters
| Chip | Impinj E710/E510/E310 |
| Air Protocol | EPC global UHF Class 1 Gen 2 (ISO 18000-6C) |
| Frequency | NA: 902 ~ 928MHz FCC (NA, SA) EU: 865 ~ 868MHz (ETSI) CN: 920 ~ 925MHz (CMIIT) Full band: 860 ~ 960MHz (OPEN) |
| Sensitivity | SIM7200: -85dBm@10%BER SIM5200: -81dBm@10%BER SIM3200: -72dBm@10%BER |
| Antenna | 4 × 50Ω SMA ports |
| RF power | 5dBm ~ 30dBm or 33dBm (±1dB) |
| Working mode | Fixed / Hop frequency |
| RSSI | Support |
| Temp detect | Support |
| Antenna detect | Support |
RF Features
| RF Features | |
| Inventory Peak Speed | SIM 7200: ＞1000 tags/s SIM 5200: ≥500 tags/s SIM 3200: ＞300 tags/s |
| Read range | SIM 7200: ＞13M (8dBi aluminum antenna) SIM 5200: ≥12m (8dBi aluminum antenna) SIM 3200: ＞13m (8dBi aluminum antenna) |
| Tag cache | 1000pcs, @96 bit EPC |
Communication interface
| Communication | UART serial port baud rate 9600~921600bps @default 115200bps |
| GPIO | 2GPI, 2GPO （3.3V TTL） |
| TTL interface | 15pin, TTL Uart3.3V（TTL） |
| Power supply | |
| Voltage | DC 5V ±5% |
| Consumption | 7.5W（peak）, 1.5A@5V 0.75W（standby）, 0.15A@5V |
Environment Parameters
| Working Temp. | -25°C ~ +65°C |
|---|---|
| Storage Temp. | -40°C ~ +85°C |
| Humidity | 5 ~ 95% (+25°C) |
| Cooler | External cooler board |
API
| API Support | C, C#/.NET, Java |
|---|
Purchase Info. (Eg: SIM 7200)
| PART NUMBER | RF Power | Frequency | Certification |
|---|---|---|---|
| 10.72000000.02 | 33/30 dBm | 860~960 MHz | Full band |
| 12.72000000.02 | 33 dBm | 920~925 MHz | SRRC |
| 10.72000100.02 | 30 dBm | 902~928 MHz | FCC |
| 10.72000300.02 | 30 dBm | 865~868 MHz | CE |
Pin Definition
| Pin | Def | Pin | Def |
|---|---|---|---|
| 1 | GND | 9 | RXD (DATA INPUT, TTL level) |
| 2 | GND | 10 | TXD (DATA OUTPUT, TTL level) |
| 3 | VCC +5V ±0.25V | 11 | NC |
| 4 | VCC +5V ±0.25V | 12 | NC |
| 5 | GPIO1 (OUT1) | 13 | NC |
| 6 | GPIO2 (OUT2) | 14 | SHUTDOWN (Low level enable, High level power off, High level should be greater than VCC-0.3V) |
| 7 | GPIO3 (IN1) | 15 | NRST (Reset, low-power calming position) |
| 8 | GPIO3 (IN2) | - | - |
Features
- ARMv7-M architecture 32bit Cortex-M4 CPU, integrated FPU, MPU, DSP, the highest work main frequency is 200MHz, 512KByte Flash
- Support UHF EPC Class1 Gen2/ISO 18000-6C
- Provide Windows，Linux and Android SDK, and API based on C, C#/.NET, JAVA
- Support inventory of temperature tags, the output parameters include the RSSI and phase value of the tag return signal
- Excellent anti-collision algorithm and high sensitivity. The fastest speed of inventory tags is greater than 1000tag/s Multiple inventory modes suitable for most applications.
- The UART serial communication baud rate can be set from 9600bp to 921600bps
- 2 inputs 2 outputs GPIO
- Domestic version with max power output of 33dBm
- Weight 56g
- Dimension:74.8mm x 48.5mm x 8.0mm
- Obtained SRRC, CE, FCC and other certifications
- Comply with ROHS requirements
Application
Handheld Terminals:
The application of RFID reader modules in handheld terminals is extremely extensive. It enables staff to carry out mobile operations conveniently.
For example, during warehouse inventory counting, staff can hold the device and walk between shelves, quickly scanning and reading the information on goods tags to grasp inventory dynamics.
In logistics distribution scenarios, it can be used to check and track package information anytime and anywhere, greatly improving work efficiency and accuracy while reducing human errors.
Desktop Readers:
Desktop readers, equipped with RFID reader modules, are often deployed in fixed office areas.
For instance, at the borrowing desk of a library, readers can place books on the reader to quickly complete the borrowing registration process, simplifying the procedure.
At employee attendance checkpoints in enterprises, employees can complete identity recognition and attendance recording by swiping cards instantly, ensuring efficient and orderly attendance management and providing users with stable and fast identification services.
Printers:
When printers integrate RFID reader modules, their functions are expanded. When printing various certificates and tickets, they not only complete graphic printing but also simultaneously embed electronic tags into the paper and write codes, realizing precise management of each item with a unique code.
In subsequent stages such as item traceability and anti-counterfeiting verification, detailed information can be obtained by scanning the tags, enhancing product security and management refinement.
Integrated Readers:
Integrated readers combine RFID reader modules and have powerful comprehensive processing capabilities.
In the field of intelligent security, when installed at the entrances and exits of communities, they can simultaneously recognize the tag information of multiple people and vehicles entering and leaving, link with the monitoring system to capture abnormal situations in real time.
Vending machines:
In commercial places like unmanned vending cabinets, relying on their fast and accurate identification function, they enable customers to enjoy self-service shopping and automatic settlement, creating a convenient consumption experience.
RFID UHF SIMX200 is widely used in handheld terminals, smart cabinets and other scenarios.
If needed, we can also provide the Complete Open Source Development Board and antenna to match the module. Contact us to know more details Now！
