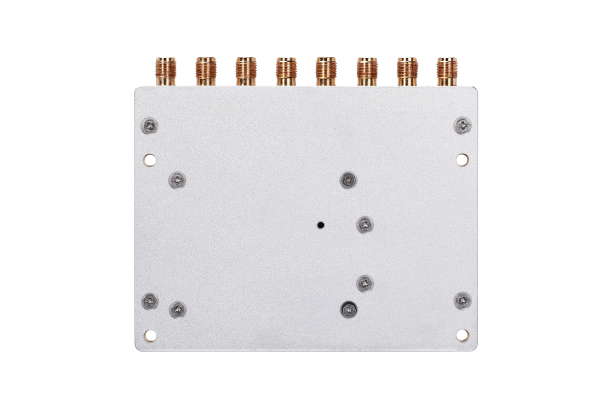

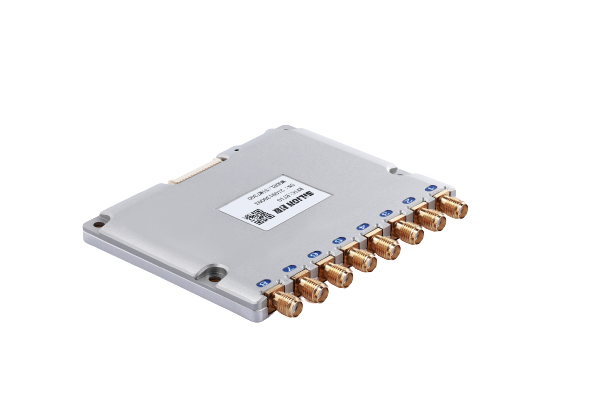

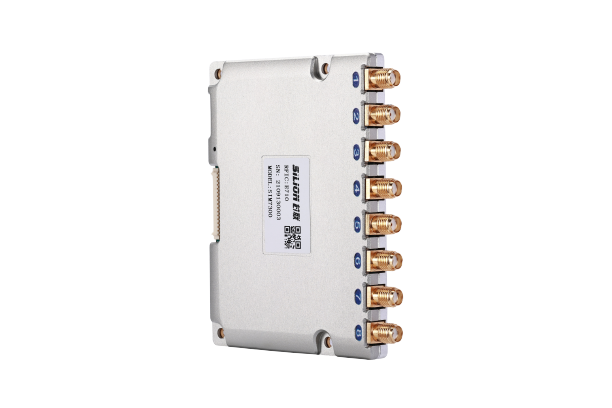

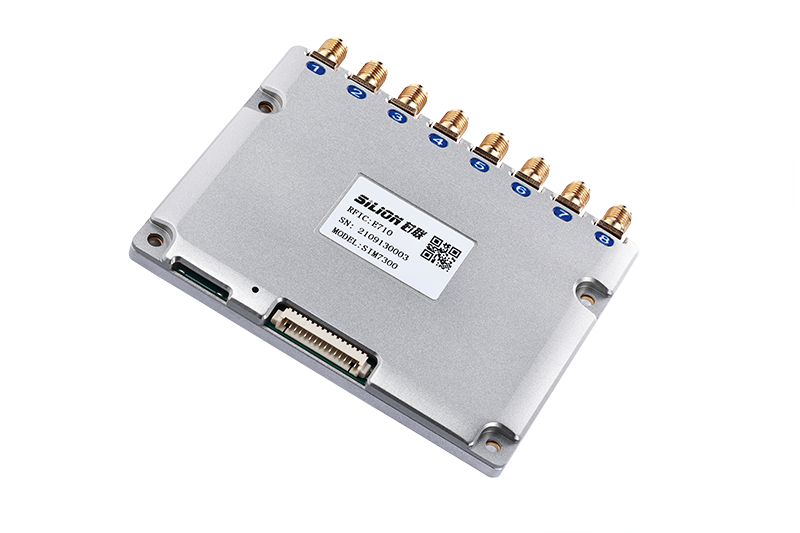

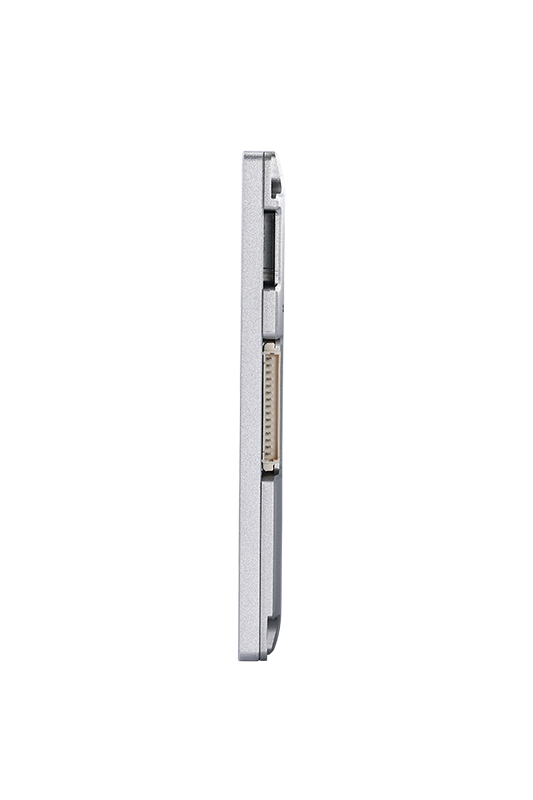

UHF SIM7300,5300,3300 Module
Short Description:
The UHF 8-port RFID module SIMX300 with high-performance, it based on IMPINJ New Generation Chip Impinj E710/E510/E310. It is good designed to meet the new retail, unmanned retail, RFID smart cabinet, RFID bookshelf needs to connect multiple antennas at the same time and design for application environment requirements. The SIMX300 module provides eight SMA antenna interfaces, supports max to 33dBm RF outputs, and can read multiple tags quickly. It is the preferred choice for asset management, unmanned retail and new retail industries.
Characteristic
Physical
| Size | 93.5mm x 83.2mm x 8mm |
| Weight | 120g |
| Connector material | Brass gold plated |
| PCB | FR4 gold plated |
| Shield material | Aluminum Alloy |
| RF Parameters | |
| Chip | IMPINJ E710 |
| Air Protocol | EPC global UHF Class 1 Gen 2 (ISO 18000-6C) |
| Frequency |
NA: 902 ~ 928MHz FCC (NA, SA) EU: 865 ~ 868MHz (ETSI) CN: 920 ~ 925MHz (CMIIT) Full band: 860 ~ 960MHz (OPEN) |
| Sensitivity |
SIM7300: -86dBm@10%BER SIM5300: -79dBm@10%BER SIM3300: -72dBm@10%BER |
| Antenna | eight 50Ω SMA ports |
| RF power | 5dBm ~ 30dBm or 33dBm (±1dB) |
| Working mode | Fixed / Hop frequency |
| RSSI | Support |
| Temp detect | Support |
| Antenna detect | Support |
RF Features
| Inventory Peak Speed |
SIM7300: ＞1000 tags/s SIM5300: ＞500 tags/s SIM3300: ＞300 tags/s |
| Read range | >13M (8dBi aluminum antenna) |
| Tag cache | 1000pcs, @96 bit EPC |
| Communication Interface | |
| Communication |
UART serial port baud rate 9600~921600bps @default 115200bps |
| GPIO | 2GPI, 2GPO (3.3V TTL) |
| TTL Interface | 15pin, TTL Uart3.3V (TTL) |
Power Supply
| Voltage | DC 5V ±5% |
| Consumption |
8.25W (peak), 1.65A@5V 0.75W (standby), 0.15A@5V |
Environment Parameters
| Working Temp. | -25°C ~ +65°C |
| Storage Temp. | -40°C ~ +85°C |
| Humidity | 5 ~ 95% non condensing (+25°C) |
| Cooler | External cooler board |
API
| API Support | C, C#/.NET, Java |
Pin Foot Definition
| Pin | Def | Pin | Def |
| 1 | GND | 9 | RXD (DATA INPUT, TTL) |
| 2 | GND | 10 | TXD (DATA OUTPUT, TTL) |
| 3 | VCC +5V ±0.25V | 11 | NC |
| 4 | VCC +5V ±0.25V | 12 | NC |
| 5 | GPIO1 (OUT1) | 13 | NC |
| 6 | GPIO2 (OUT2) | 14 |
SHUTDOWN (Low level enable, High level power off, High level should be greater than VCC-0.3V) |
| 7 | GPIO3 (IN1) | ||
| 8 | GPIO3 (IN2) | 15 | NRST (Reset, low-power calming position) |
Features
IMPINJ E710/E510/E310 Chip
IMPINJ E710/E510/E310 ultra-high frequency reader and writer chip, high sensitivity, wide range of reading, low power consumption, good performance.
Excellent Label Read Performance
Read the label fast, read stable, multi-label anti-collision ability, read the distance far, using the 8dBi antenna, read the distance greater than 13 meters, multi-label read fast, up to 1000 tags/second.
8-Antenna Polling Mode of Work
High-speed 8-antenna polling mode, 8 antennas can be set different RF output power, read a wider range, more applicable scenarios.
Multiple Monitoring Functions and Excellent Stability
The module supports label RSSI detection, antenna connection status detection, and working temperature detection. The multi-data detection is more convenient for users to use efficiently. The module can work steadily in ambient temperature from -25 ° C to + 65 ° C, support in 5% -95% of the environmental humidity in the stable work, efficient and stable performance, can be applied to a variety of harsh working environment.
Small Size
It can be easily integrated into different types of RFID equipment, such as filing cabinets, tool cabinets.
Application
Industrial Automation & Smart Manufacturing:
Production Line Management: Data collection for work-pieces or containers at high speed (300~1000 tags/s) to optimize workflows.
Logistics & Supply Chain Management:
Bulk Cargo Identification: Long-range scanning (0-13m) for pallets/containers to streamline warehousing.
Intelligent Transportation & Vehicle Management:
Fleet Scheduling: Installed at several checkpoints that vehicles must pass through, manage of vehicles and cargo for route optimization.
Retail & Asset Management:
Inventory Management: Handheld devices enable contactless stocktaking with <0.1% error rate.
Vending Machines:
In commercial places like unmanned vending cabinets, relying on their fast and accurate identification function, they enable customers to enjoy self-service shopping and automatic settlement, creating a convenient consumption experience.
Healthcare Services:
Medical Equipment Manage: Anti-metal tags for surgical tools and drug cabinets ensure full traceability.
RFID UHF SIMX300 is widely used in handheld terminals, smart cabinets and other scenarios.
If needed, we can also provide the Complete Open Source Development Board and antenna to match the module.
