• ARMv7-M structure 32bit Cortex-M4 CPU, integrated FPU, MPU, DSP, highest operating frequency is 200MHz, with 512KBytes of flash memory.
• Support UHF EPC Class1 Gen2/ISO 18000-6C.
• Windows，Linux，Android SDK and API based on C,C#/.NET，JAVA are provided.
• Supports temperature tag inventory, and the output parameters can include the RSSI.
• Max 33dBm output power.
• Features an excellent anti-collision algorithm, high sensitivity, and a tag inventory speed exceeding 350~1000 tags per second.
• Multiple inventory modes are available to suit most applications.
• The UART serial communication baud rate can be configured from 9600 bps and above.
• 2 inputs and 2 outputs of GPIO.
• North American and European frequency bands: Full power at 30dBm with a power consumption of 5W.
  Chinese frequency band: Full power at 33dBm with a power consumption of 6.75W.

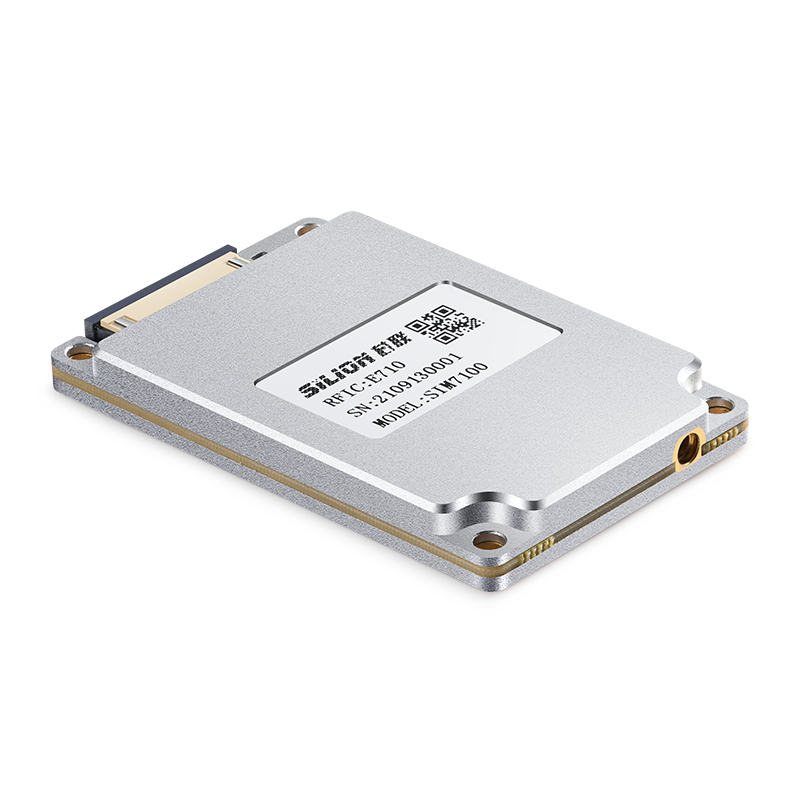

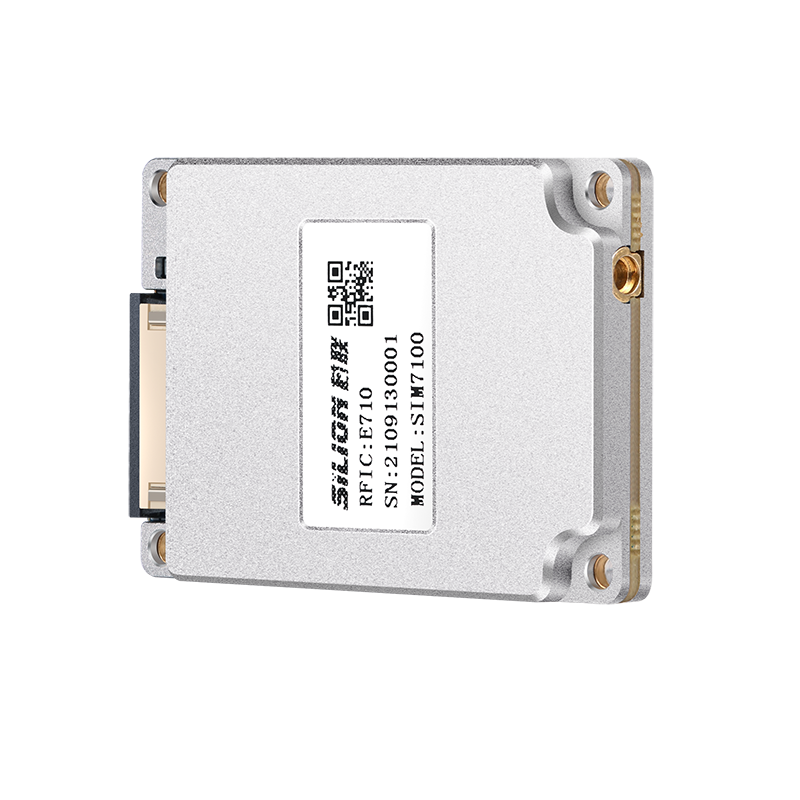

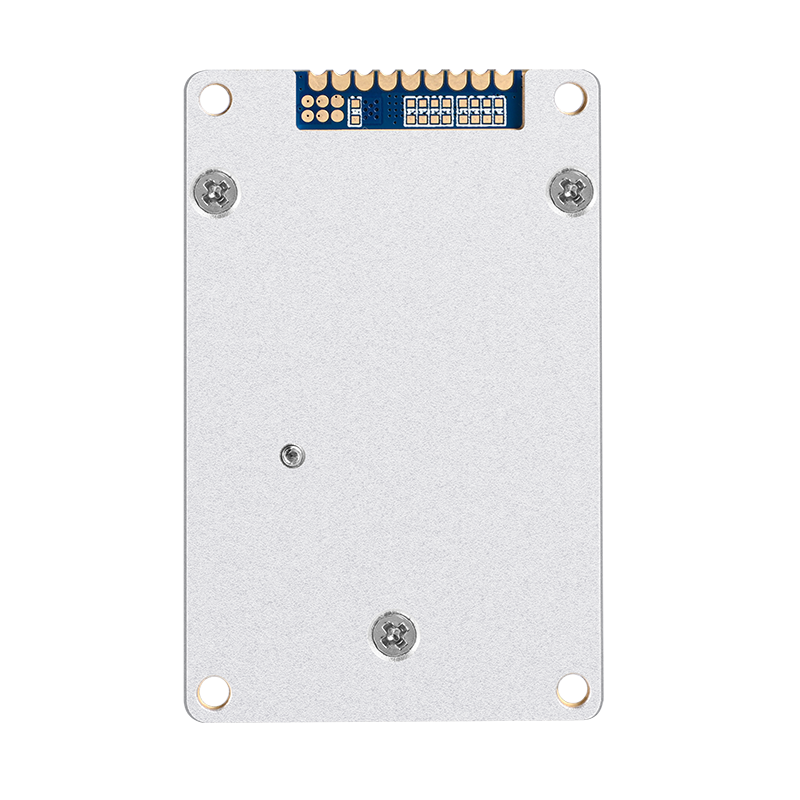

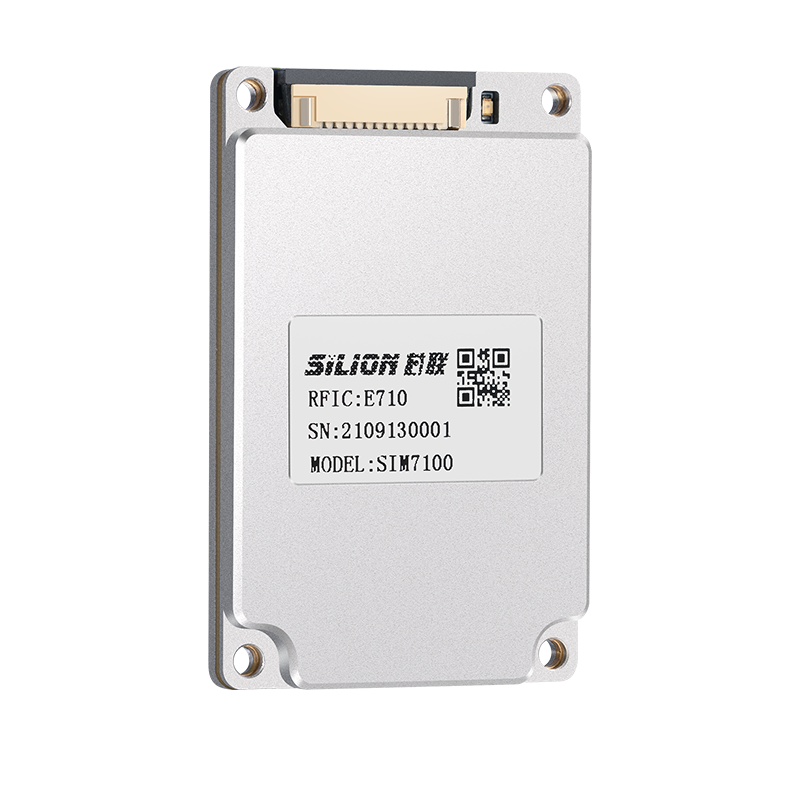

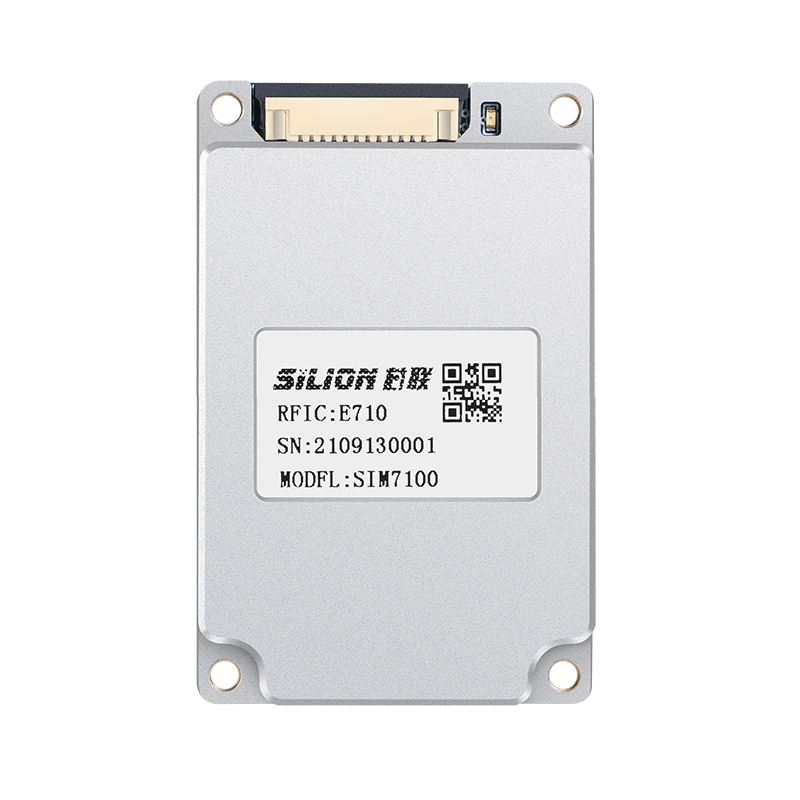

• Aluminum alloy matte finish casing, weighing 21 g.
  Dimension 55.9mm x 35.6mm x 6.0mm.
• SRRC, CE, FCC certificated
• Meet ROHS requirements

Handheld Terminals:
The application of RFID reader modules in handheld terminals is extremely extensive. It enables staff to carry out mobile operations conveniently.

For example, during warehouse inventory counting, staff can hold the device and walk between shelves, quickly scanning and reading the information on goods tags to grasp inventory dynamics.

In logistics distribution scenarios, it can be used to check and track package information anytime and anywhere, greatly improving work efficiency and accuracy while reducing human errors.

Desktop Readers:
Desktop readers, equipped with RFID reader modules, are often deployed in fixed office areas.

For instance, at the borrowing desk of a library, readers can place books on the reader to quickly complete the borrowing registration process, simplifying the procedure.

At employee attendance checkpoints in enterprises, employees can complete identity recognition and attendance recording by swiping cards instantly, ensuring efficient and orderly attendance management and providing users with stable and fast identification services.

Printers:
When printers integrate RFID reader modules, their functions are expanded. When printing various certificates and tickets, they not only complete graphic printing but also simultaneously embed electronic tags into the paper and write codes, realizing precise management of each item with a unique code.

In subsequent stages such as item traceability and anti-counterfeiting verification, detailed information can be obtained by scanning the tags, enhancing product security and management refinement.

Integrated Readers:
Integrated readers combine RFID reader modules and have powerful comprehensive processing capabilities.

In the field of intelligent security, when installed at the entrances and exits of communities, they can simultaneously recognize the tag information of multiple people and vehicles entering and leaving, link with the monitoring system to capture abnormal situations in real time.

Vending machines:
In commercial places like unmanned vending cabinets, relying on their fast and accurate identification function, they enable customers to enjoy self-service shopping and automatic settlement, creating a convenient consumption experience.

RFID UHF SIMX100 is widely used in handheld terminals, smart cabinets and other scenarios.

If needed, we can also provide the Complete Open Source Development Board and antenna to match the module.

Contact us to know more details Now！
