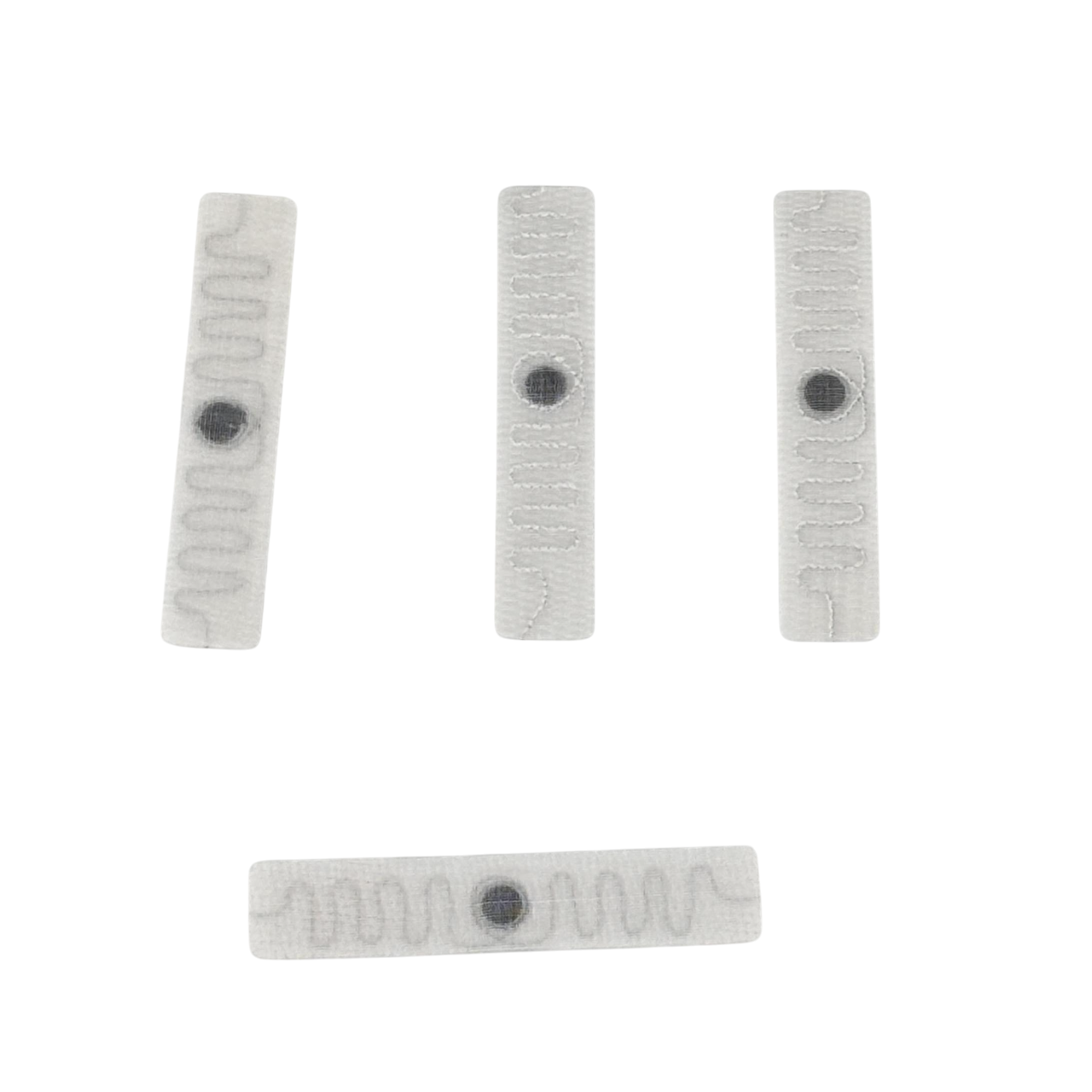

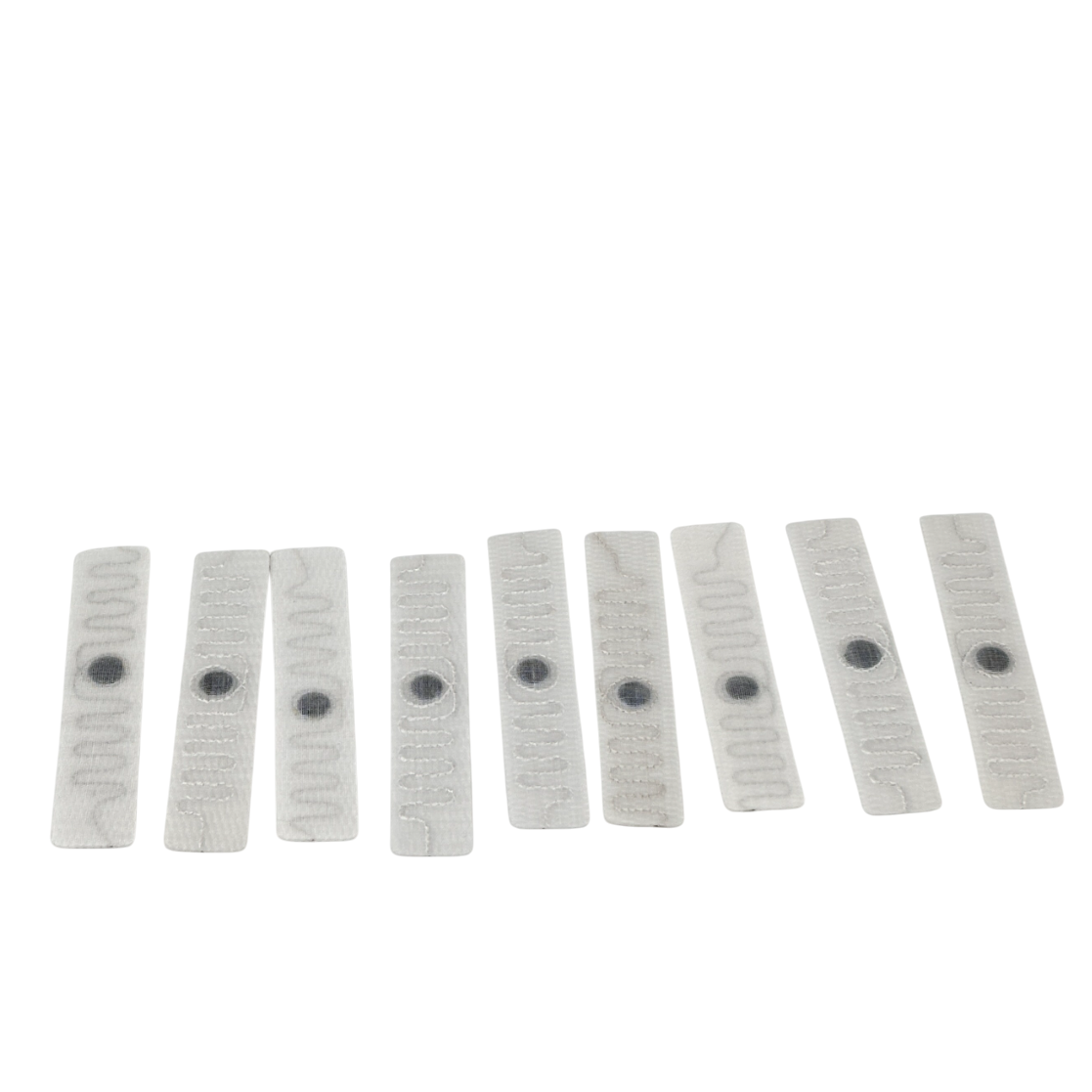

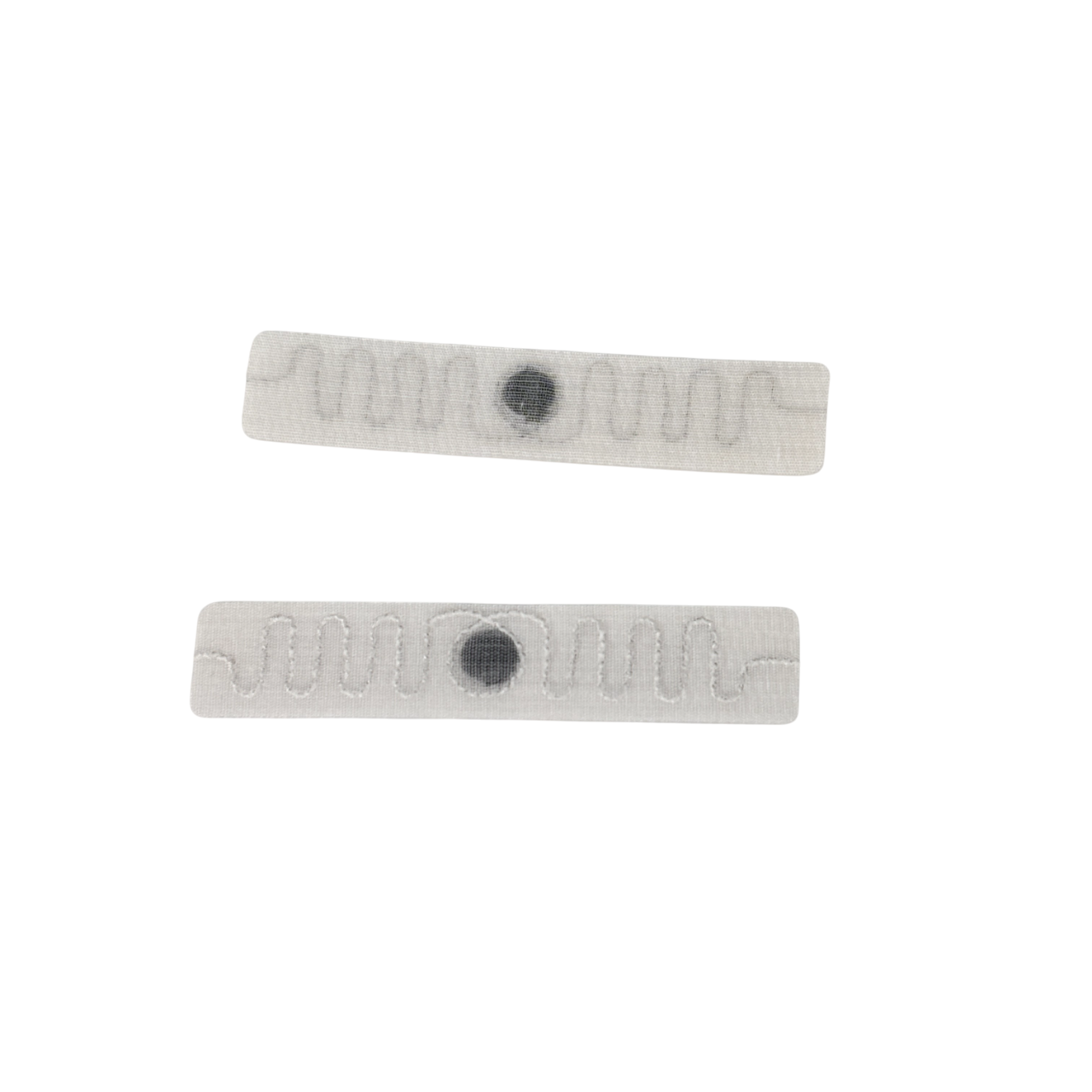

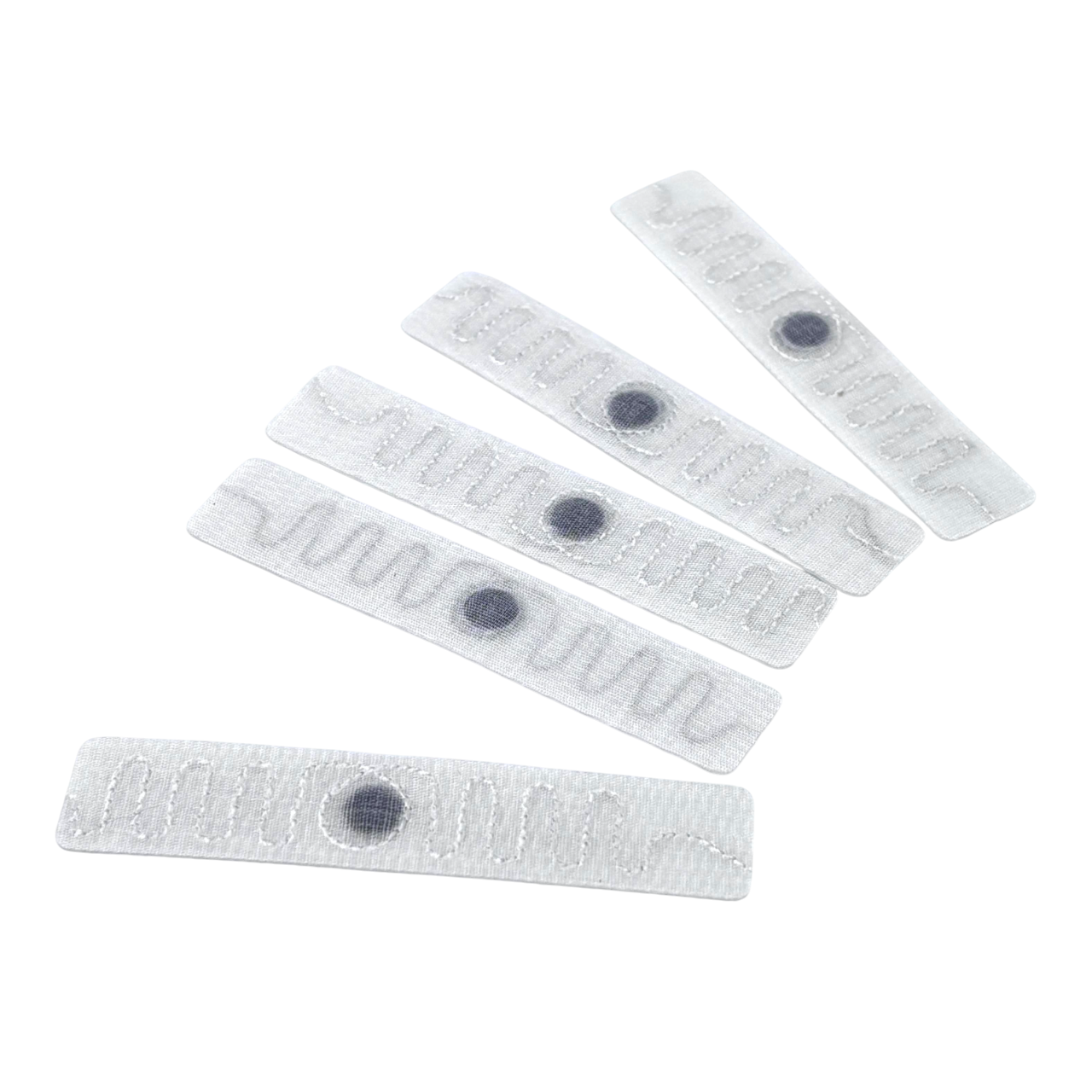

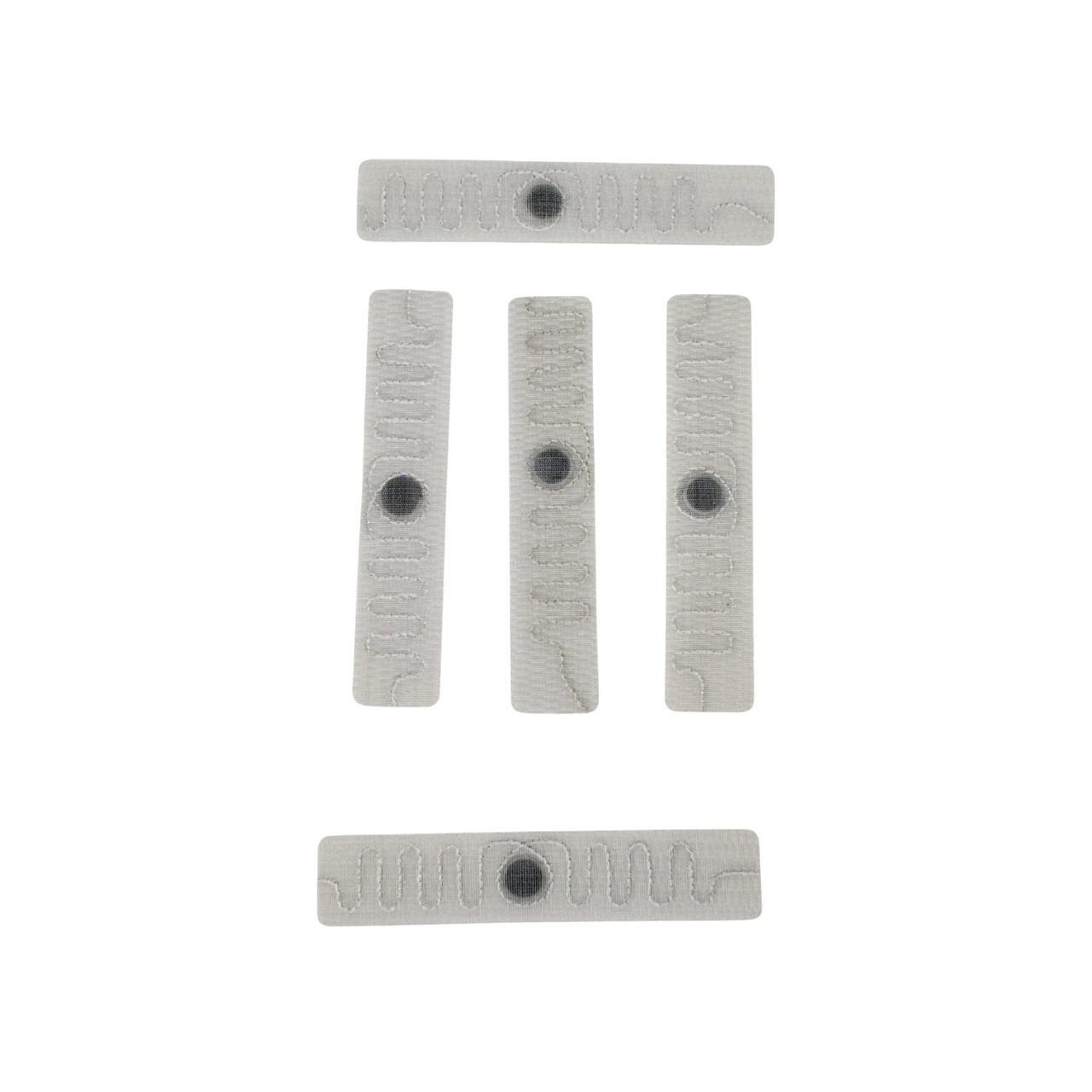

RFID Woven Laundry Tag
Short Description:
RFID Woven Laundry Tag is an intelligent identification solution designed for textile management. Crafted from durable polyester or nylon, it features waterproofing, high-temperature resistance, and chemical corrosion resistance, making it ideal for industrial laundry, hotel linen tracking, medical uniform management, and more. Embedded with a passive RFID chip, the tag stores unique identifiers and custom data (e.g., owner details, wash cycles, care instructions). Its wireless scanning capability enables rapid bulk reading, enhancing sorting efficiency and accuracy. The eco-friendly design requires no battery, offers over 10 years of lifespan, and can be easily sewn or heat-sealed onto fabric surfaces for seamless integration.
Characteristic
- Name: RFID Woven Laundry Tag
- Work frequency: UHF 860-960MHz (can customize other specific frequency)
- Work Protocol: EPC ClassI Gen2; ISO18000-6C
- Chip type: NXP Ucode 7 or other
- Chip memory: EPC 128-bits, user area 32-bit,Access Password 32-bit,TID TID 96-bit,TID unique code, can't modify.
- Working mode: Read and write（can rewrite content to chip 100k times)
- Tag polarization: Linear
- Reading distance: Fixed: more than 5.5meters
- Handheld: more than 2 meters
- Material: Flexible Textile
- Size: 70x15x1.45mm, 15x87x0.9mm, 20x60x0.9mm, 18x87x0.9mm or custom
- Color: White (can customize color)
- Working Temperature: -25-70 degrees
- Ironing Temperature:
- 100degrees@ 60 minutes
- 125 degrees@ 10 minutes
- 160 degrees@30minutes
- 200 degrees@30seconds
- High and low temperature alternating test: -40-150 degrees 7 times high and low temperature alternating test, continue 2 days testing pass
- Data storage: 10 years
- Certificate standard: RoHS and SGS certificate
- Test standard:
- 100% function test
- Finland Voyantic consistency test
- Reliability test
- Package: Multiple 1000pcs.
- Remark:
- When sewing and installing, the stitches must not damage the metal wires and chip modules on the label;
- When hot ironing is installed, when the temperature reaches 215 degrees ~ 218 degrees (15 seconds ~ 20 seconds), the ironing effect is excellent.
- When it is lower than 210 degrees, there is a hidden danger that the hot effect is not good;
- Different read-write facilities have different read-write performance.
Features
Material and Durability
Made with high-strength polyester or nylon, tear-resistant and abrasion-resistant.
Water and oil resistant, suitable for high-temperature washing, drying, and disinfection processes.
Resistant to chemical corrosion, able to withstand industrial chemicals such as bleach and detergents.
Intelligent Identification Technology
Built-in passive RFID chip, supporting contactless reading and writing.
Stores unique identifiers and additional data (such as owner information, washing count, maintenance records).
Efficient Operation
Batch scanning: No visual alignment required, fast reading from a distance (hundreds of tags can be identified at a time).
Reduces manual intervention, lowers sorting error rates, and improves inventory management efficiency.
Flexible Installation and Environmentally Friendly
Can be directly sewn, heat-pressed, or hung on the fabric surface without affecting the user experience.
Battery-free design, ultra-long lifespan (≥10 years), meeting sustainable development requirements.
Application
Industrial Laundry and Rental Services:
Manage and lifecycle management of large-scale textiles such as hospital bed sheets, surgical gowns, and catering linens. Automation of asset recovery and billing for rental companies (e.g., work clothes, towels).
Hotel and Accommodation Industry:
Monitoring the cleaning frequency of guest room linens (sheets, towels) to prevent loss and optimize inventory. Ensuring hygiene compliance of guest supplies to enhance customer trust.
Medical and Laboratory Environments:
Traceability of sterilization processes for medical staff uniforms and laboratory protective clothing to avoid cross-contamination. Targeted allocation and disposal management of high-value medical device fabrics.
Logistics and Supply Chain:
Management of textile transportation to reduce misdeliveries and omissions. Automated warehousing and inventory management to accelerate inbound and outbound processes.
What Can RFID Laundry Tag do for you?
1. Reduce Manual Laundry Sorting.
2. Provide Accurate Wash Count Records.
3. Provide Visibility Into Inventory Quickly And Easily.
4. Reduce Loss and Theft.
5. Provide Meaningful Customer Information.
6. Enable Accurate Check-In and Check-Out System.
Efficient & Durable, Smart manage—Simplify textile management with our RFID woven laundry tags!
