RFID Windshield Label

Short Description:

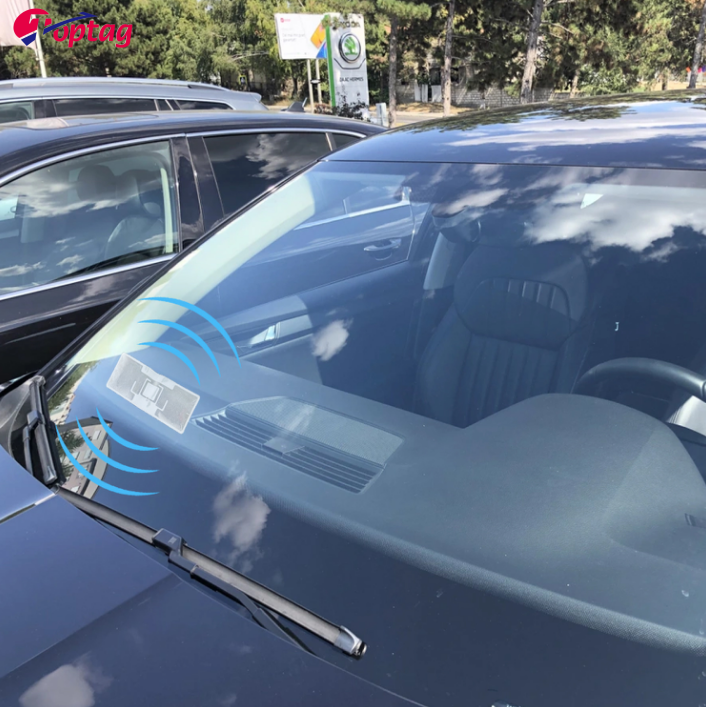

The RFID windshield tag is an advanced electronic label based on Radio Frequency Identification (RFID) technology, specifically designed for vehicle management. It is affixed to a car's windshield, providing each vehicle with a unique digital identity that enables efficient and automated recognition. Key functions include vehicle entry/exit times and locations, checking annual inspection status, insurance details, and other critical data. With non-contact long-range reading capabilities (up to 10 meters), it significantly enhances traffic management efficiency and security.

The RFID windshield tag is an advanced electronic label based on Radio Frequency Identification (RFID) technology, specifically designed for vehicle management. It is affixed to a car's windshield, providing each vehicle with a unique digital identity that enables efficient and automated recognition. Key functions include vehicle entry/exit times and locations, checking annual inspection status, insurance details, and other critical data. With non-contact long-range reading capabilities (up to 10 meters), it significantly enhances traffic management efficiency and security.

Characteristic

Name: RFID Windshield Label Sticker
Chip:   UHF:  NXP Ucode 9/Alien H3/4/5, Monza4/5/6
Other common chips also available under request.
Material: PET/Paper/PVC
Size: 50*50MM, 100*40MM,100*50MM, or customized
Protocol:   ISO 18000-6C/EPC Class1 Gen2
Frequency: 860~960MHz
Operating temperature range:  -35℃ to +85℃
Operating Mode: Passive
IC Life:  100,000 Programming cycles, 10years data retention
Feature:  Waterproof, Disposable, Anti-tear
Printing: Offset printing
Craft: Tamper Proof, with cutting line, self destructive antenna/ paper
Shipping Format:

  • Roll format
  • Vacuumed packing in ESD bag

Quantity:  2000±2Pcs/roll
Packaging method:8 rolls/ctn (Actual Quantity as per Shipping Mark)
Application:

  • Assess control
  • Payment
  • Car Pass
  • Car wash management

Features

(1) Unique Identifier:
Each RFID windshield tag has a unique identification code, which is like an exclusive ID card for a car and can accurately distinguish different vehicles.

(2) Non-contact reading:
Without direct contact with the reader, tag information can be read quickly and accurately at a certain distance, which is convenient and fast and reduces physical wear.

(3) Store vehicle information:
It can store a vehicle-related information, such as vehicle model, license plate number, owner information, insurance information etc.

(4) Anti-tampering:
Once the label is illegally removed or damaged, the windshield label will be torn and cannot be reused, ensuring information security.

Application

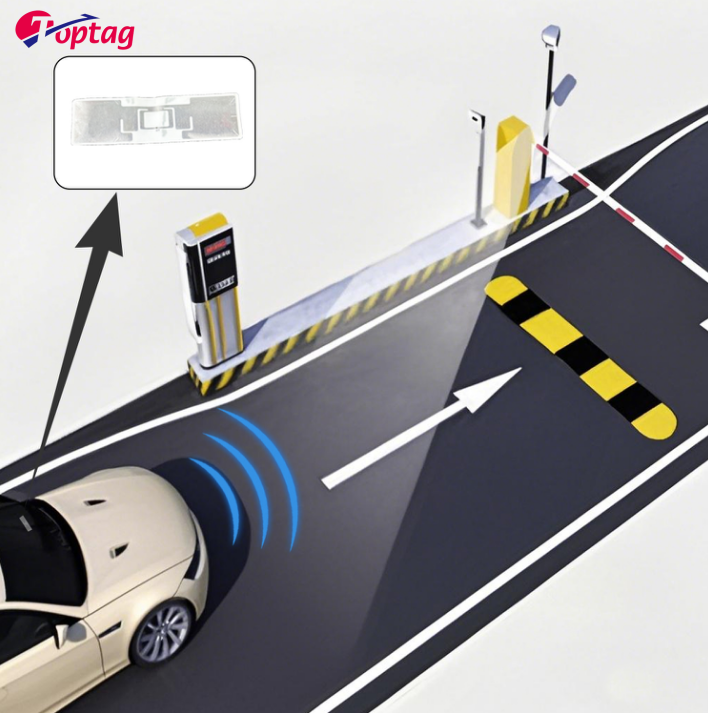

I. Automatic Vehicle Identification and Intelligent Management: After installing RFID readers in parking lots, highways, toll stations, and other locations, vehicles can be automatically identified without stopping, recording entry and exit times and locations, significantly improving traffic efficiency and reducing labor costs. For example, highway toll gates use contactless tag reading to achieve rapid passage and alleviate congestion.

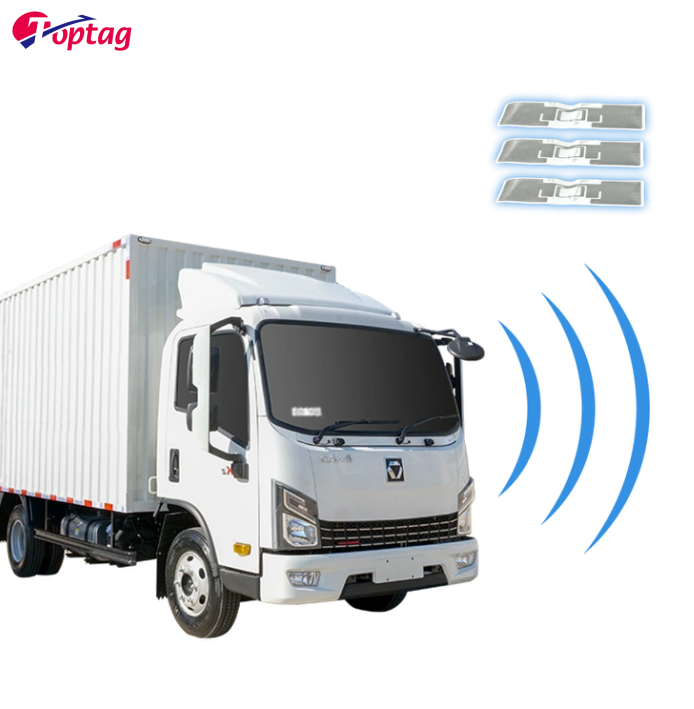

Transport Vehicle Monitoring: For construction vehicles such as dump trucks and muck trucks, RFID tags can be used in conjunction with weighing stations or inspection stations to achieve long-distance automatic identification and registration, real-time statistics on vehicle numbers, passage frequency, and settlement data, improving transportation efficiency.

II. Vehicle Lifecycle Management:
Manufacturing and Warehousing Management: In the automotive production process, RFID tags can be used for parts inventory monitoring; when vehicles enter the warehouse, information is automatically collected by long-distance reading devices and uploaded to the system for subsequent inspection and maintenance.
Sales and Used Car Management: In new car sales, tags store vehicle model, configuration, and other information, which consumers can quickly obtain by scanning; the used car market uses tags to bind vehicle identity, simplifying vehicle inspection, warehousing, and outbound processes.

III. Security and Anti-counterfeiting Traceability:

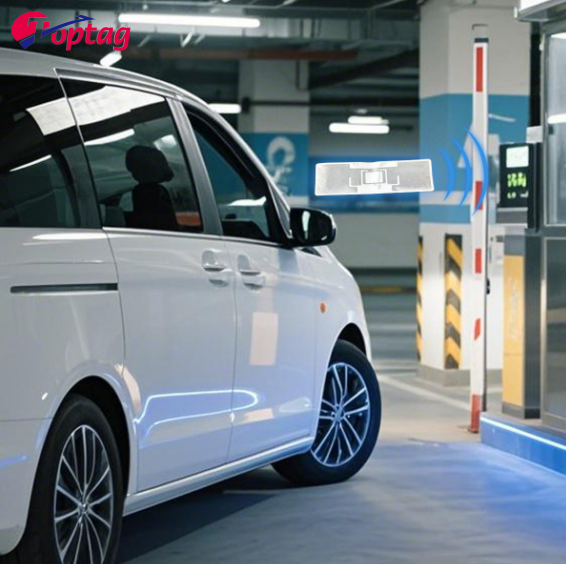

Anti-theft and Access Control: RFID tags provide a unique ID for each vehicle. Combined with access control systems, this can prevent unauthorized vehicles from entering specific areas (such as government agencies and business parks), enhancing security.

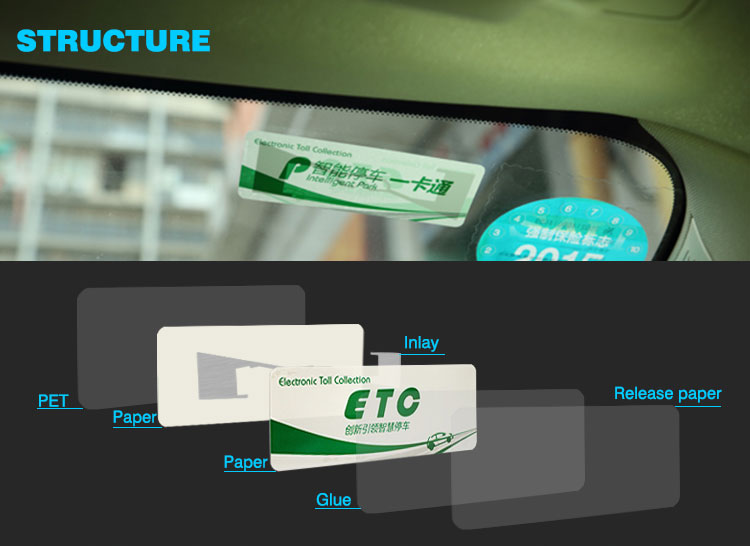

Anti-counterfeiting and Data Encryption: Encapsulated in PET material, the tags are waterproof, heat-resistant, and UV-resistant. An encryption chip further prevents data tampering.

RFID windshield tags, featuring characteristics such as being passive, enabling long-range and rapid reading/writing, and offering customization, have become an indispensable tool in modern vehicle management.


  • Payment Method : TT , Paypal, and Irrevocable L/C at sight
  • Port Of Shipment : Nanning Shenzhen Guangzhou China
  • Delivery Detail : Delivery time depends on the order quantity
