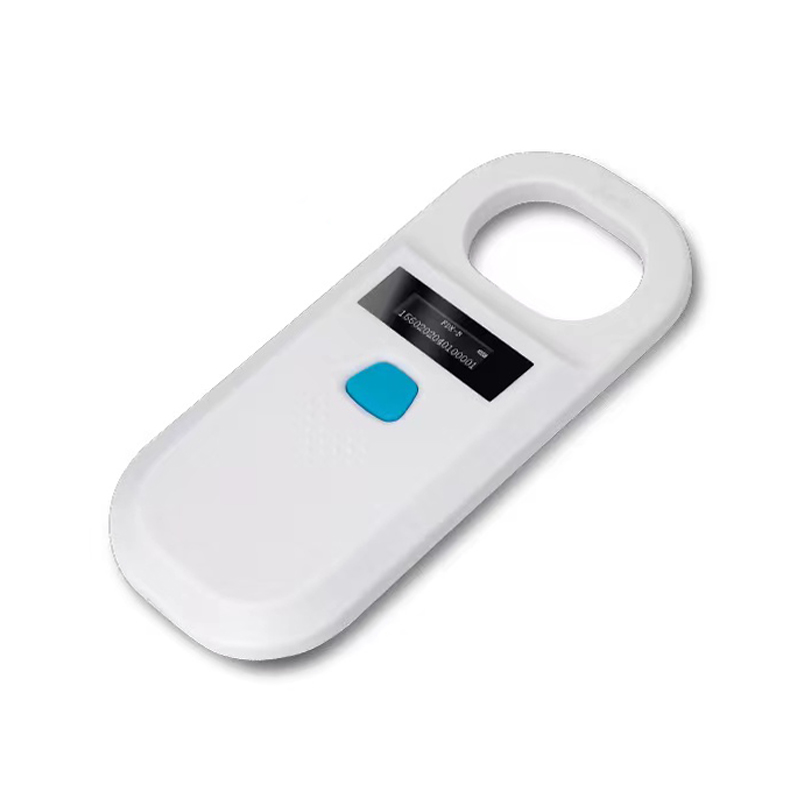

RFID W90A Reader
Short Description:
The RFID W90A Reader is a versatile low-frequency tag scanner designed for efficient wireless identification of EMID and FDX-B (ISO11784/85) compliant tags. Featuring a high-brightness OLED display, it delivers clear visibility even in direct sunlight, making it ideal for outdoor asset tracking and railway inspections. With 128-record internal storage and USB data transfer capabilities, users can seamlessly manage animal microchips, industrial resources, or logistical assets. Its rugged design and one-button operation ensure reliability across veterinary clinics, wildlife conservation, and infrastructure maintenance workflows.
Characteristic
|
project |
parameter |
|
Name |
W90A Reader |
|
working frequency |
134.2Khz |
|
support tag |
EMID、FDX-B(ISO11784/85) |
|
reading/ writing range |
2-12mm glass tube label ＞ 5cm 30mm animal ear mark ＞ 15cm (Related to label performance) |
|
standard |
ISO11784/85 |
|
Reading time |
＜100ms |
|
prompt |
0.91 "high
brightness OLED screen, buzzer |
|
power supply |
3.7V (lithium battery) |
|
memory |
128 pieces of
information |
|
communication |
USB2.0 |
|
language |
English or
customized |
|
working temp |
-10℃~50℃ |
|
Storage temp |
-30℃~70℃ |
|
Package size |
17.5cm×8.8cm×3.5cm |
|
weight |
140g |
Features
Supports 134.2kHz frequency band with seamless reading of FDX-B (ISO11784/5) and EMID format tags, ensuring universal adoption in animal tracking and industrial asset management.
High-Speed Recognition:
Delivers ultra-fast tag detection (<100ms response time) at distances up to 5cm for glass tube microchips and 15cm for animal ear tags, optimizing workflow efficiency in veterinary clinics and livestock monitoring.
Rugged Environmental Tolerance:
Operates reliably in temperatures from -10°C to 50°C and stores safely between -30°C to 70°C, making it ideal for harsh outdoor or factory environments.
Intuitive User Interface:
The 0.91-inch high-brightness OLED display provides real-time data visibility under direct sunlight.
Portable Power Efficiency:
Lightweight design (140g) houses a long-lasting lithium battery with auto-off function after 120 seconds of inactivity, extending service life for fieldwork and mobile applications.
Seamless Data Management:
Stores 128+ tag records internally and enables instant USB data transfer to PCs, streamlining inventory audits and compliance reporting.
Application
Livestock Management Excellence:
Streamline cattle identification, breeding cycle tracking, and preventive healthcare monitoring with non-contact data collection.
Pet Chip Scanning System:
Instantly read microchips for pet registration, loss prevention, and medical history management at veterinary clinics or animal shelters.
Wildlife & Laboratory Research:
Ethically monitor wildlife populations or log experimental animal data without physical interference, supporting conservation efforts.
Small Animal Traceability:
Ensure full lifecycle oversight of lab mice, birds, and exotic species through secure database integration.
The W90A reader is an indispensable assistant in your animal identification and management work! And we also have many other animal card readers for you to choose.
