RFID PCB Anti-metal Tag
Short Description:
The RFID PCB Anti-metal Tag is made PCB material with performance of waterproof, anti-metal, anti-drop, which is the best option for the outdoor/indoor asset management. There are holes both side and back sticker for the installation.
Characteristic
Name: RFID PCB Anti-metal Tag
Size: 100*30*35mm,95*25*3.5mm,90*11*3.5mm 36*13*3.5mm,18*93.5mm or custom
Material: PCB
Color: Black
Feature: Work Stable, Water Proof, heat resistance, Anti corrosion, Moisture resistance, prevent collision, can use it the harsh environment of outdoor.
Frequency: 13.56MHz/ 860~960MHz
Protocol: ISO15693/ ISO18000-6C
Chip types: Alien series, IMPINJ series or other chip
Reading Range: 1-10m (Depend on reading device and environment)
Working temperature: -20-150℃
Read&Write Times: 100000 times

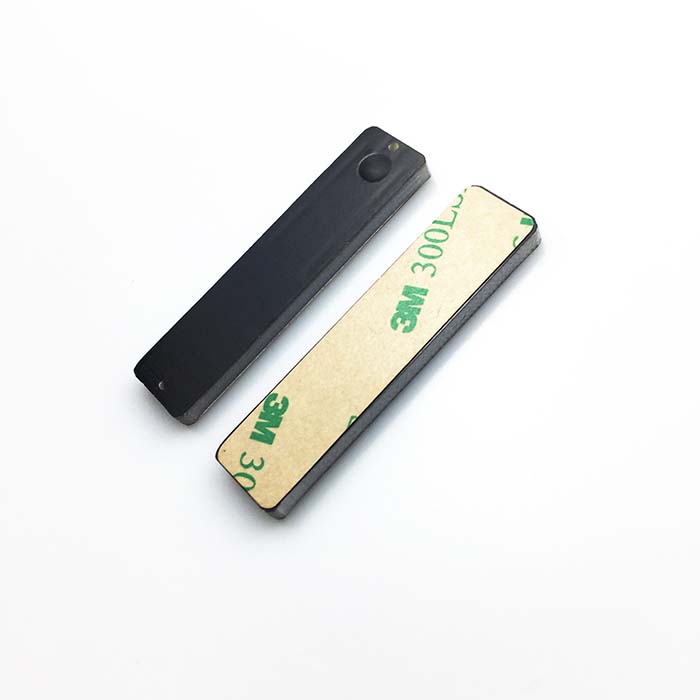

Installation: Method hole fixed/self-adhesive
Application:
- Outdoor power equipment inspection, tower pole inspection and elevator inspection
- Pressure cylinders, gasoline bottles, a variety of electrical appliances management
- warehouse management
- Mold management
- Asset management
- Logistics
Features
Utilizes PCB material, resistant to 150℃ high temperature, strong acid/alkali, and with IP68 protection rating, suitable for harsh industrial environments.
Supports UHF (860–960 MHz) with read distances up to 10 meters (depending on reader performance), enabling high-speed data transmission.
Special antenna design and impedance matching eliminate electromagnetic interference from metal surfaces, ensuring reliable data communication.
Customizable in size, shape, chip type (e.g., Alien H3/H4 or Monza M4), and mounting methods (adhesive/screw holes).
Data retention >10 years, write/erase cycles >100,000 times, with unique serial numbers for anti-counterfeiting and multi-tag reading
Application
Manage metal molds, production line equipment, and fixed assets (e.g., server chassis, switches) for life-cycle management.
Manage metal containers, pallets, and cold chain logistics equipment to enhance inventory accuracy and efficiency.
Monitor stress variations in bridge cables and oil/gas pipelines with integrated sensors for predictive maintenance.
Attach to surgical instruments or medical devices and improve instrument control.
Apply in metal tool tracking, and narrow IT asset recognition (e.g., circuit boards, aluminum strips)
RFID Anti-metal tag can be used in property management and logistic tracking management.
Upgrade your asset management system now with high-performance RFID PCB tags!
- Payment Method : TT , Paypal, and Irrevocable L/C at sight
- Port Of Shipment : Nanning Shenzhen Guangzhou China
- Delivery Detail : Delivery time depends on the order quantity
