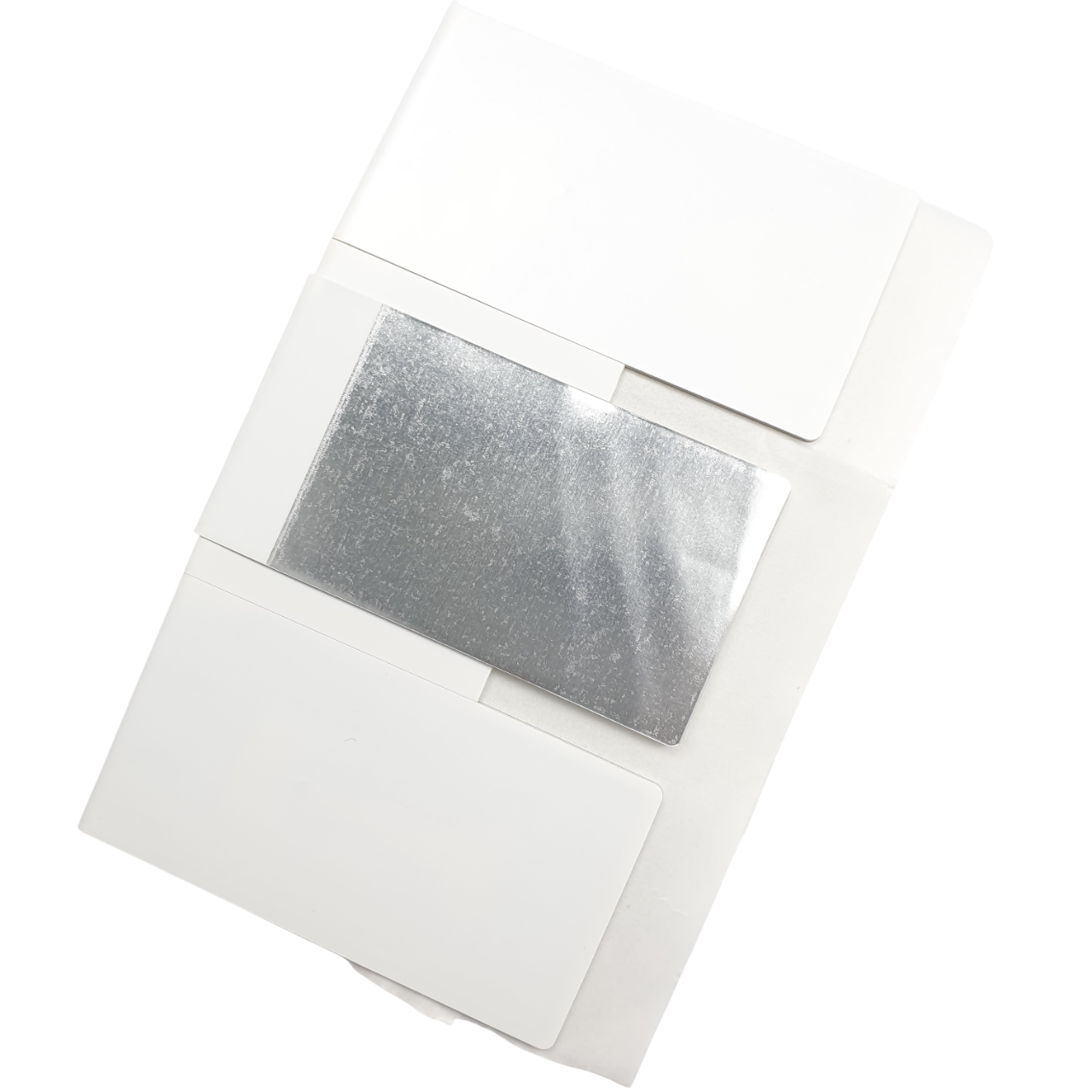

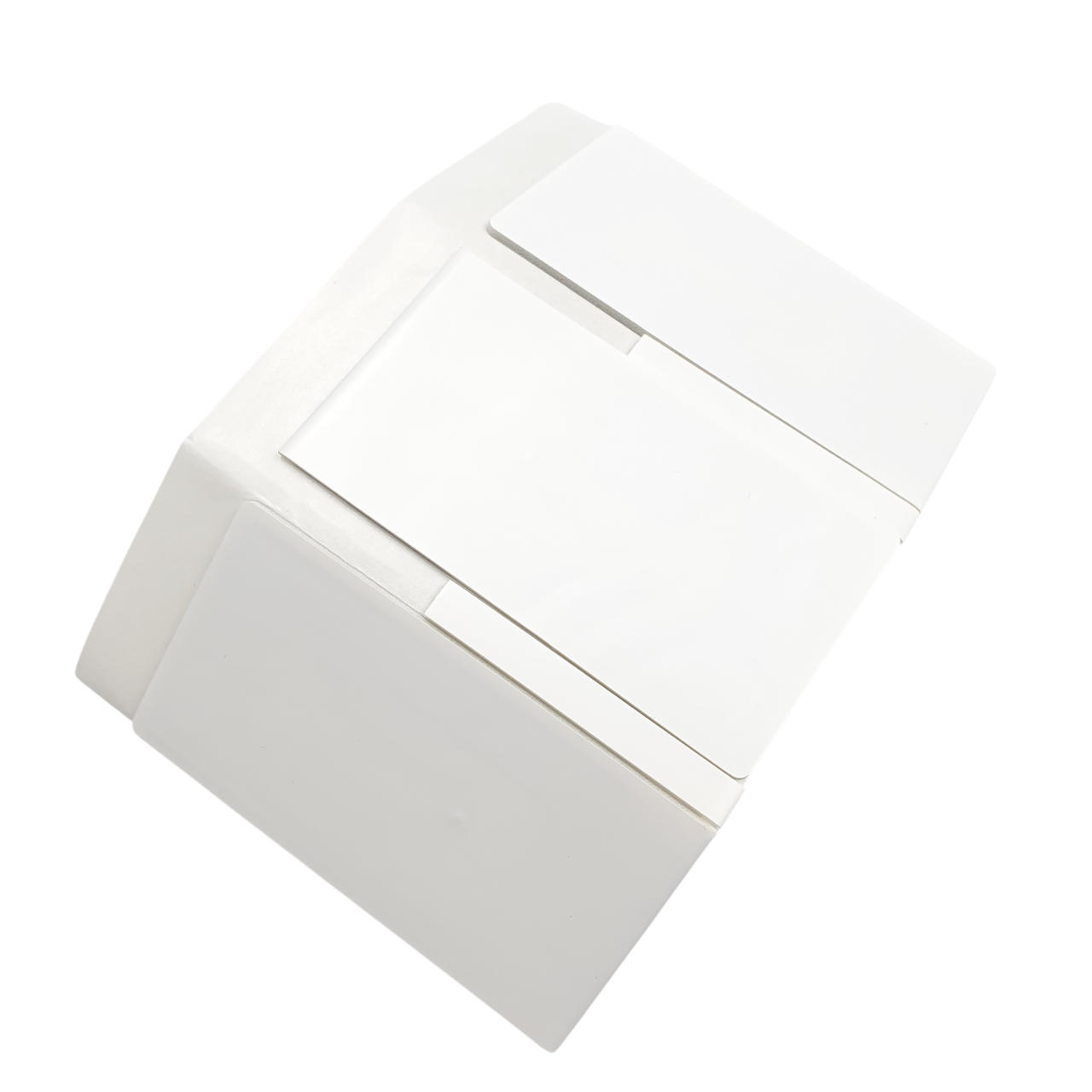

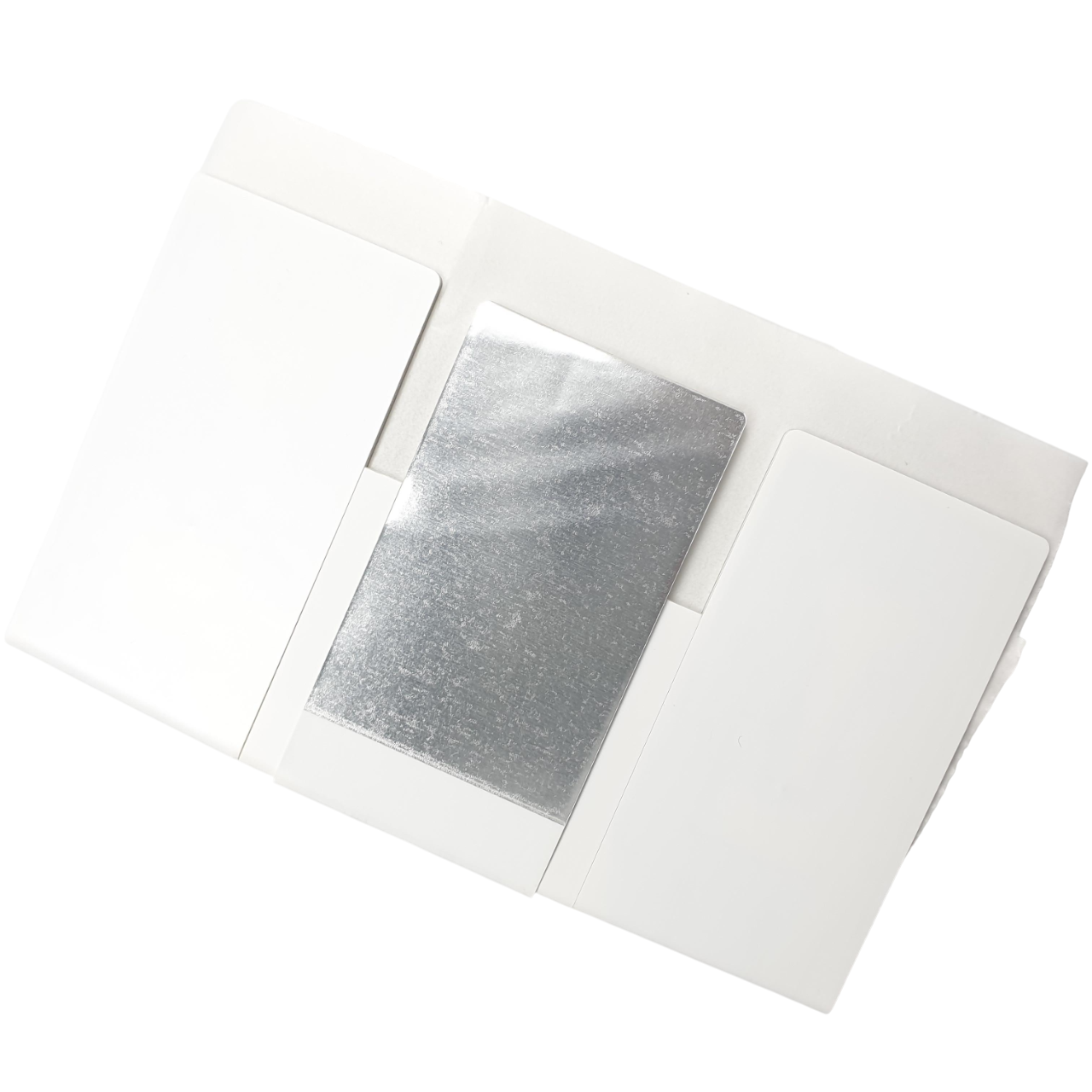

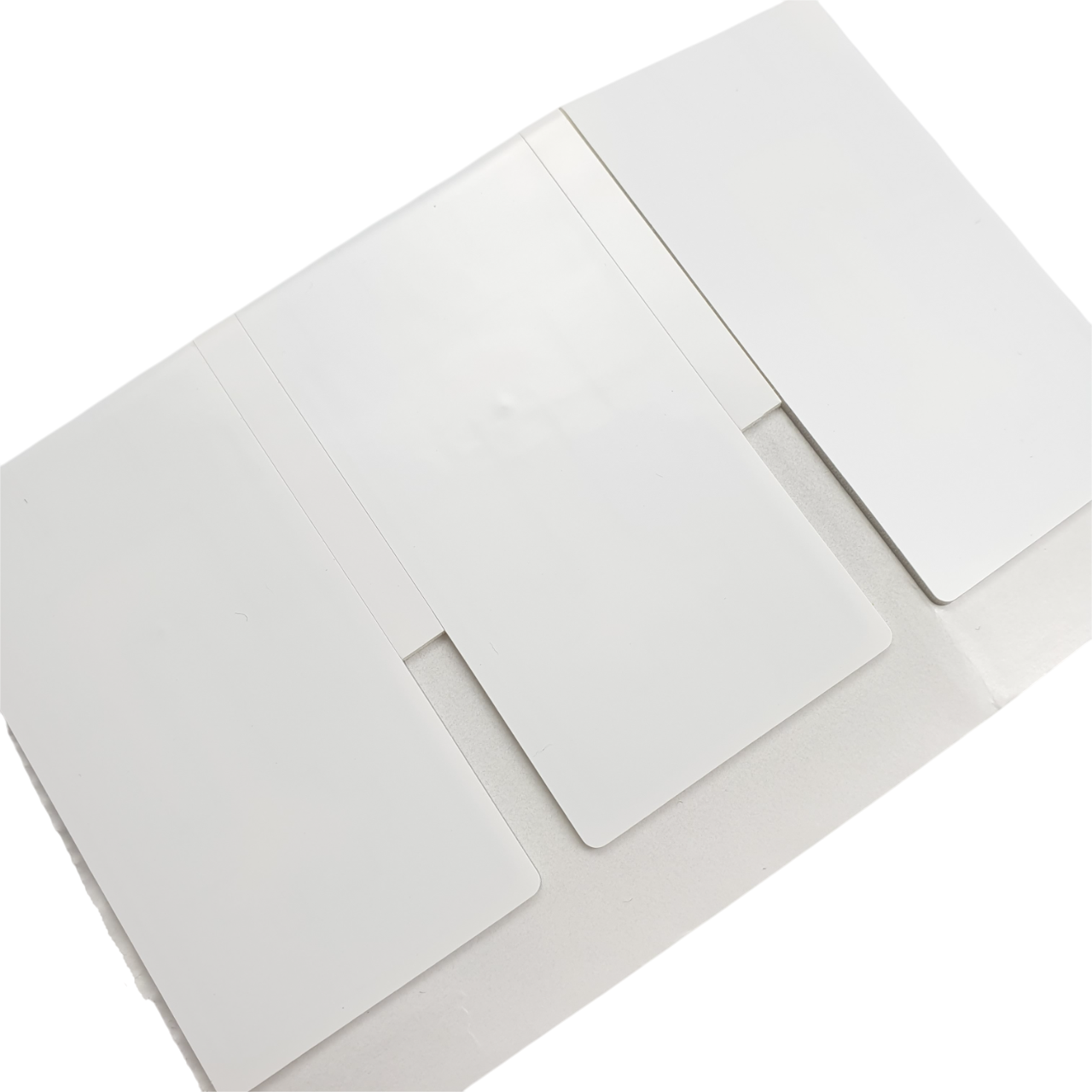

RFID Flexible Printable Anti-metal Label
Short Description:
This RFID flexible Printable Anti-metal tag is built for metal-rich environments. Its innovative flexible material and anti-interference design allow it to conform seamlessly to curved surfaces while virtually eliminating signal disruption caused by metal. Resistant to high temperatures and oil contamination, it delivers outstanding performance in challenging settings like industrial machinery, automotive manufacturing, and warehouse logistics. Supporting long-range rapid identification and data encryption, it's the ideal solution for asset management and production traceability.
Characteristic
Name: RFID Flexible Printable Anti-metal
Label
Material: Sticky paper, PE+Absorbing radio waves material
Colour: White
Size: 63x35x1.25mm, 70x30x1.25mm, etc
Multiple size available, customize acceptable
Firming way: self-adhesive glue
Feature:
High Protection Class IP65, could print by printer
( compatible with Sato
Gta412e, Toshiba 5T etc) Can be auto written SN code, Ultra thin 0. 88mm.
Protocol： ISO15693/ISO-180006C
Frequency: HF/UHF
Re-write Time: 100,000 times
Installation: Adhesive
Sealing chip: Alien series, IMPINJ Series
Working Temperature:
-20-0°℃
Read and write range:
0.5-2m
Application: Water meter, IT server and equipment assets management, metal parts management, machine identification and management etc.
Features
● Flexible Compatibility
Utilizing flexible substrates such as polyester and polyimide, the tag can bend and conform closely to curved surfaces (e.g., pipelines, curved mechanical parts), and can even adapt effectively to irregular metal surfaces.
● Anti-Metal Interference Capability
Through the use of wave-absorbing materials, electromagnetic shielding layers, or specially designed antennas, it significantly counteracts the reflection and absorption interference of RF signals by metal, ensuring stable and reliable read/write performance in metallic environments.
● Environmental Durability
Wide Temperature Tolerance: An operating temperature range from -40°C to 125°C makes it suitable for high-temperature workshops as well as cold storage environments.
Robust Physical Resistance: It is waterproof, oil-proof, resistant to vibration and mechanical shock, and can withstand corrosion from chemicals such as sulfuric acid and saline solutions.
● High-Efficiency Identification Performance
The tag offers a long read range and supports rapid batch identification, capable of reading over 50 tags per second.
● Durability and Cost-Effectiveness
Featuring a passive (battery-free) design, its memory supports over 10,000 rewrite cycles and a service life of up to 10 years, significantly reducing long-term maintenance costs.
● Flexible Integration and Security
Easy Integration: The adhesive backing allows for simple installation, and the surface can be printed with barcodes, QR codes, or corporate logos.
Data Security: The memory supports data encryption and includes permanently locked sectors for customized data, ensuring information security and preventing tampering.
Application
Industrial Manufacturing & Equipment Management
Manage automotive components (e.g., engines, drive shafts)recording production batches and assembly status.
Warehousing & Logistics Tracking

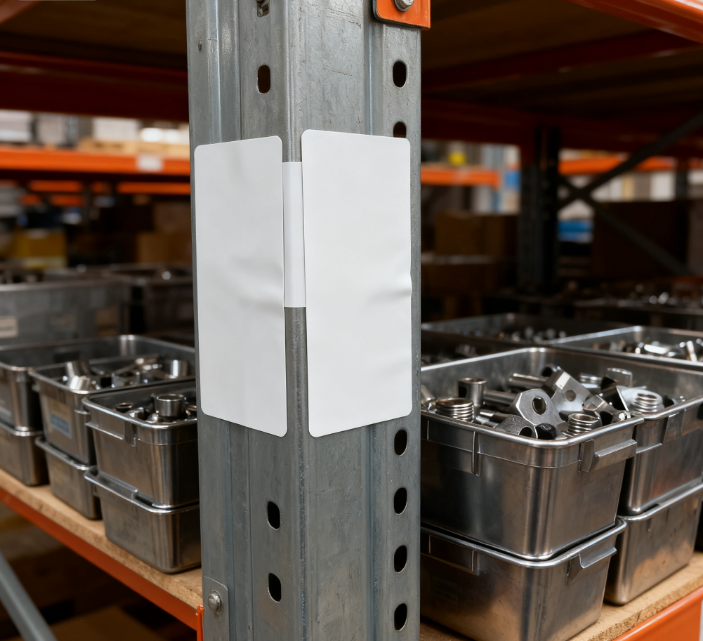

Manage metal shelves and pallets to enable automated inventory counting.
Monitor container shipments to enhance supply chain visibility.
IT Asset Management
Identify equipment in server rooms to optimize the lifecycle management of IT assets.
Energy & Hazardous Materials Control
Identify oilfield equipment (e.g., valves, pipelines)
Label chemical containers to comply with hazardous material traceability regulations.
Transportation & Urban Infrastructure
Manage metal parts of vehicles to improve maintenance and recall efficiency.
Identify smart parking facility equipment to strengthen the operational maintenance of transportation infrastructure.
With the dual advantages of flexible adaptability and anti-interference capability, flexible on-metal labels have become a core enabling technology for efficient management in metal-rich environments.
