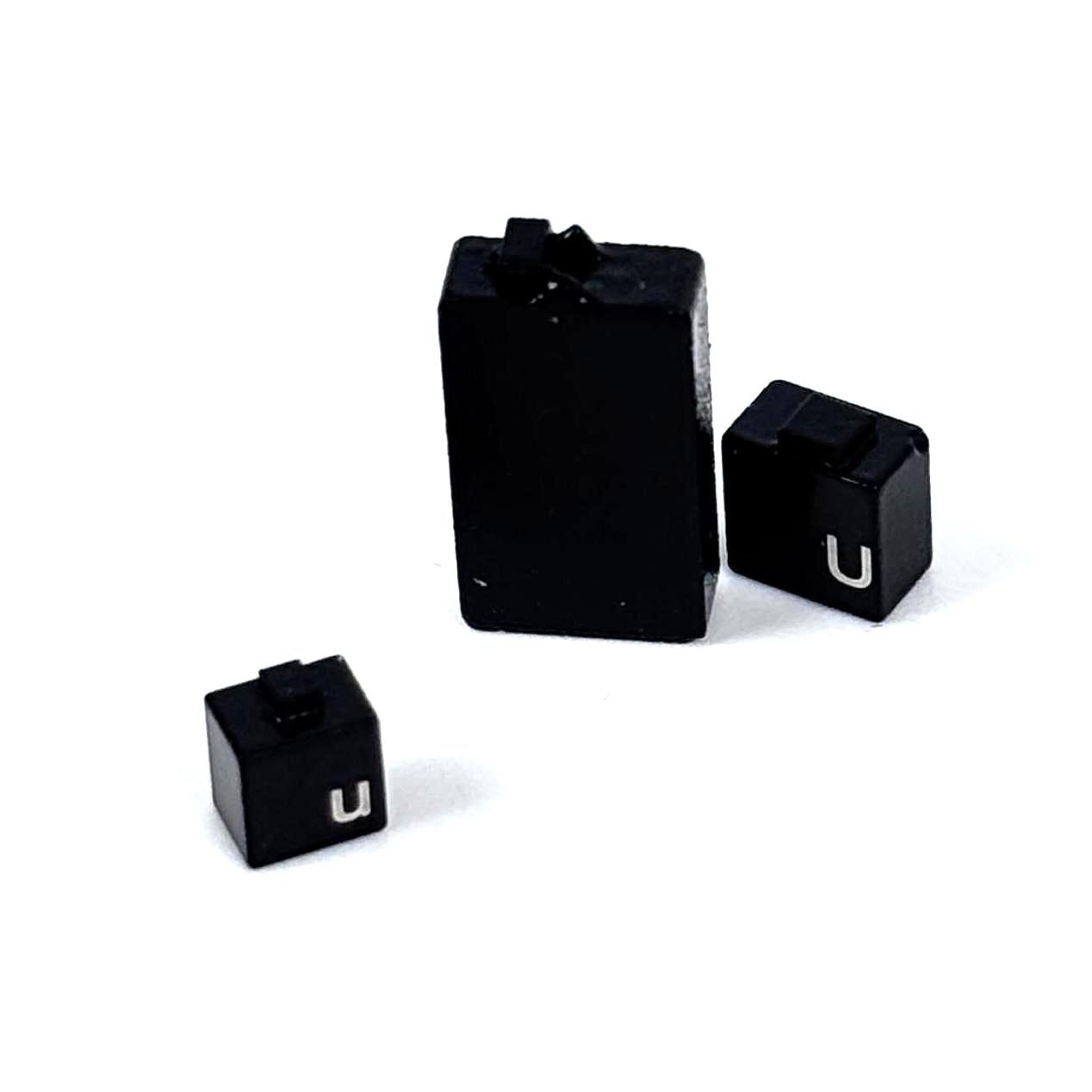

RFID Ceramic Tag
Short Description:
RFID ceramic tags are radio-frequency identification devices encapsulated with ceramic materials, offering exceptional environmental stability. They are manufactured using high-temperature ceramic sintering and silver-plated antenna technology ensuring reliability in extreme conditions. With outstanding environmental adaptability and high reliability, RFID ceramic tags demonstrate significant application value in industrial, transportation, and commercial sectors.
RFID ceramic tags are radio-frequency identification devices
encapsulated with ceramic materials, offering exceptional environmental stability. They are
manufactured using high-temperature ceramic sintering and silver-plated antenna
technology ensuring reliability in extreme conditions. With outstanding
environmental adaptability and high reliability, RFID ceramic tags demonstrate
significant application value in industrial, transportation, and commercial
sectors.
Characteristic
| Name | RFID Ceramic Tag |
|---|---|
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US (902-928MHZ), EU (866-868MHZ) |
| IC Type | Alien Higgs-3 |
| Memory | EPC 96bits, USER 512bits, TID 64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range (Fix Reader) | 0.8m, On metal |
| Read Range (Handheld Reader) | 0.4m, On metal |
| Warranty | 1 Year |
Physical Specification
| Size | 4.0×4.0×3.0mm, 5.0×5.0×3.0mm, 6.0×2.0×2.0mm or other |
|---|---|
| Weight | Different size different weight |
| Material | Ceramic |
| Colour | Black |
| Mounting Methods | Adhesive |
Environmental Specification
| IP Rating | IP68 |
|---|---|
| Storage Temperature | -40°C to +150°C |
| Operation Temperature | -40°C to +85°C |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
Features
Wide Temperature Range: Full-ceramic tags operate at -40℃ to 200℃, with some models supporting storage up to 250℃, ideal for harsh environments.
Anti-Metallic Interference: Specially designed ceramic substrates and silver antennas enable mounting on metal surfaces without signal loss, maintaining long read distances (up to 25 meters).
Durability & Security: Supports over 100,000 write/erase cycles and 50 years of data retention. Tamper-proof design ensures destruction upon removal, suitable for anti-counterfeiting and asset management.
Protocol Compatibility: Compliant with ISO18000-6C/6B and EPC Gen2, operating at 860-960MHz for global UHF systems.
Application

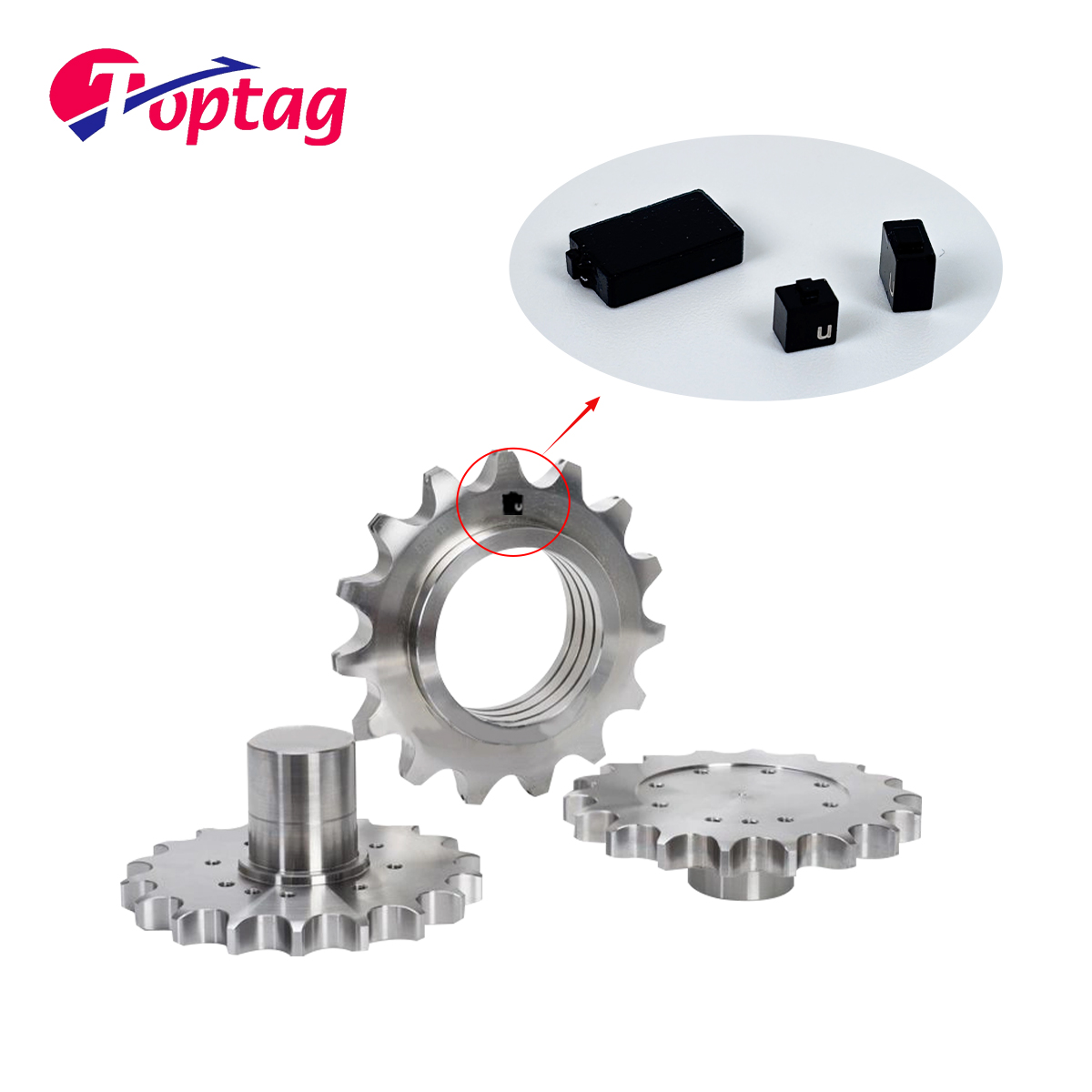

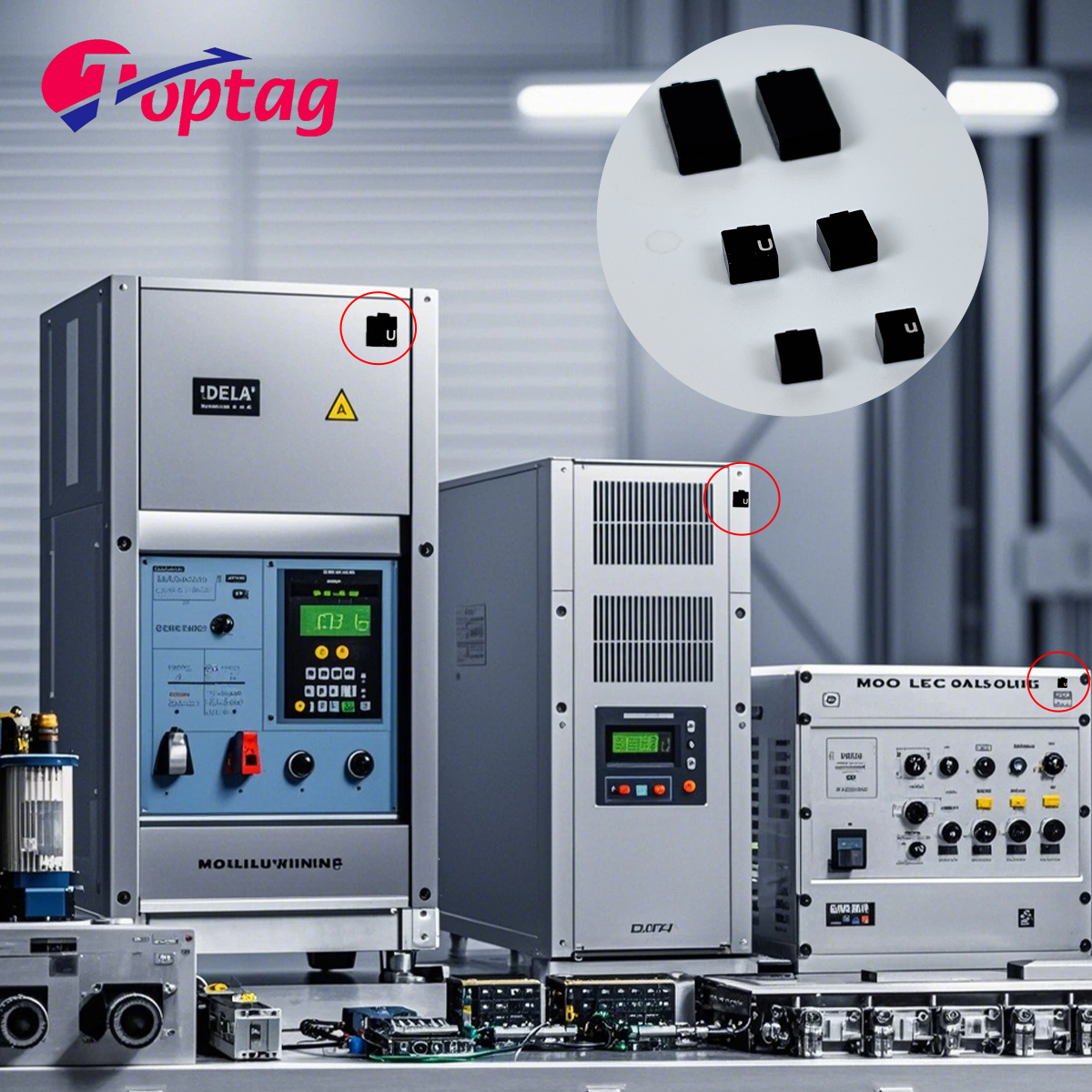

Industrial Use: Power equipment inspection, metal structure quality control, pressure vessel identification.

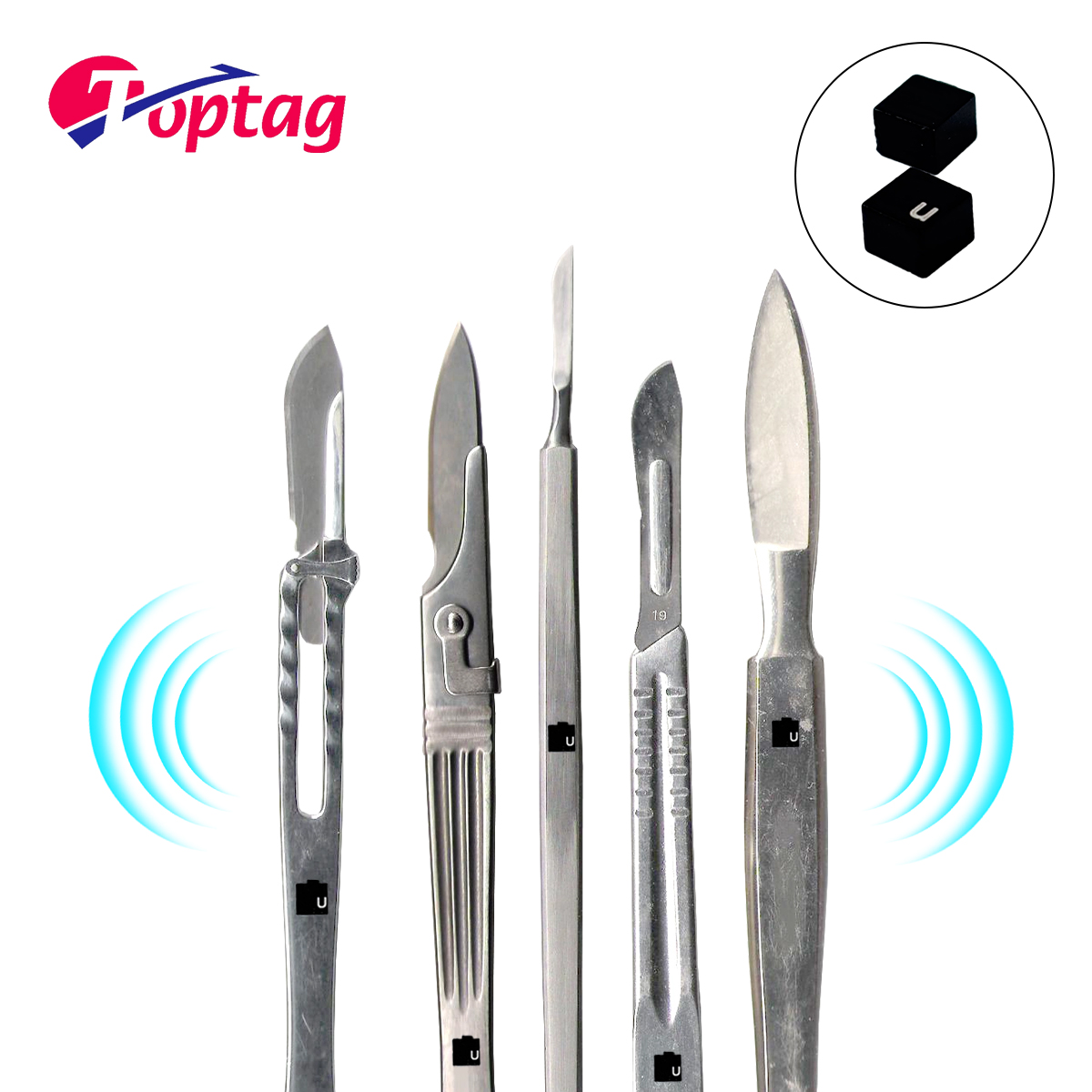

Commercial Security: Asset management, library management, Hospital Equipment Management.
Choose our RFID ceramic tags, heat-resistant, interference-proof, and long-lasting to effortlessly handle demanding environments like high-temperature industries!
- Payment Method : TT , Paypal, and Irrevocable L/C at sight
- Port Of Shipment : Nanning Shenzhen Guangzhou China
- Delivery Detail : Delivery time depends on the order quantity
