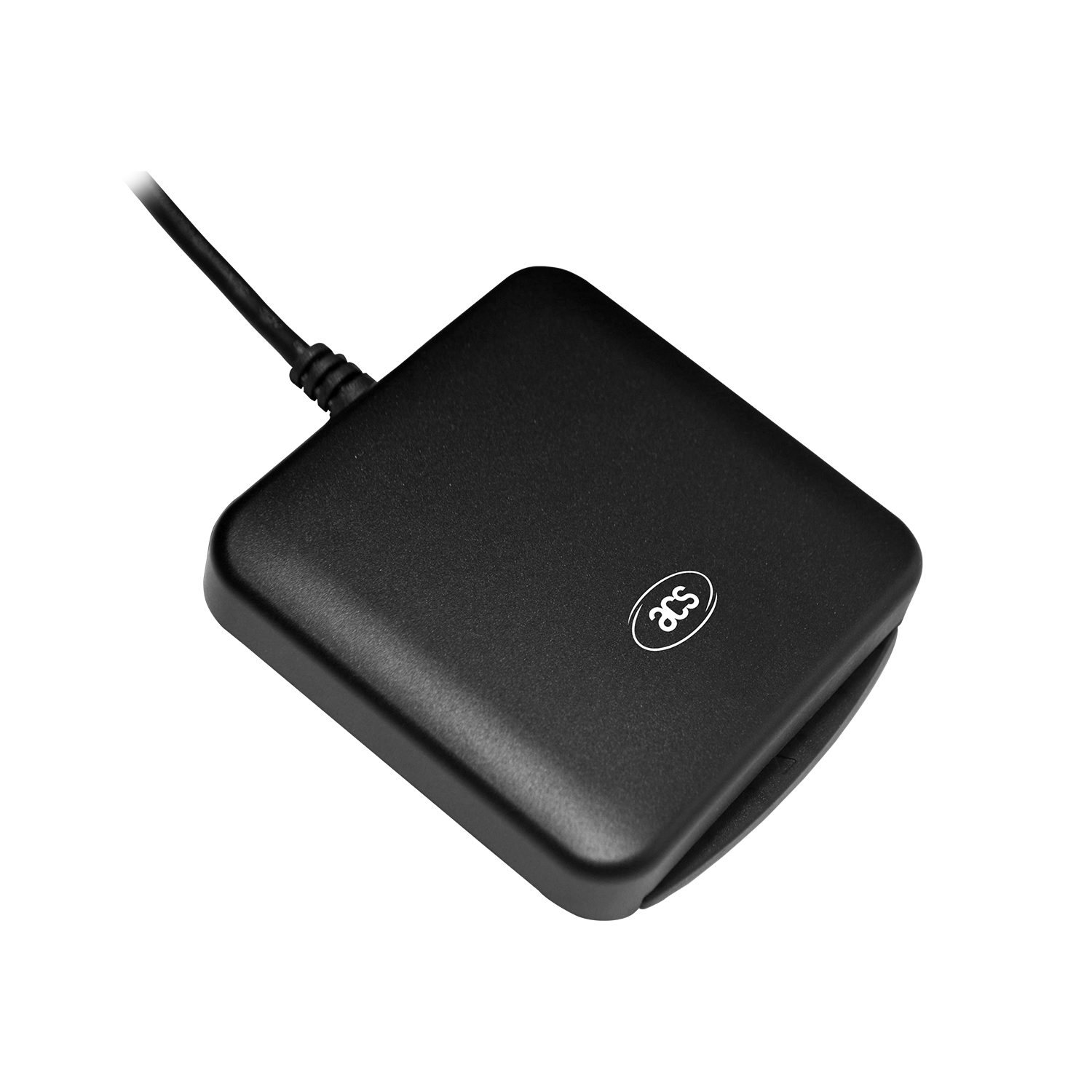

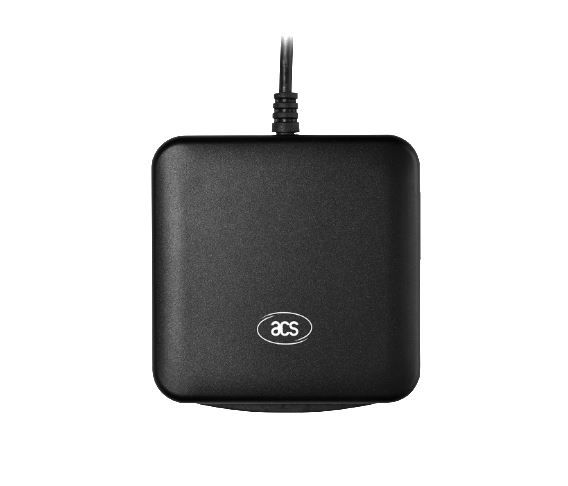

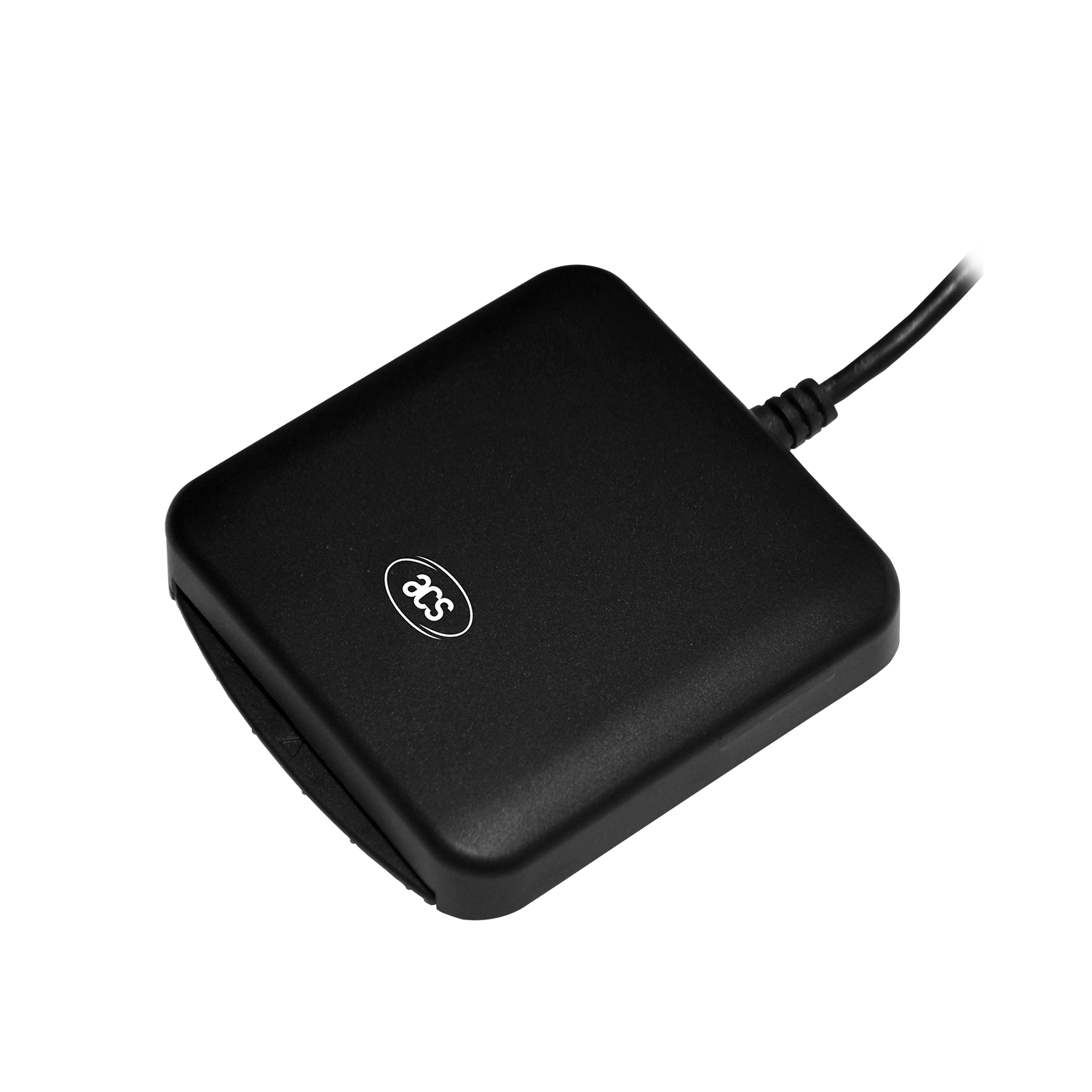

ACR 39U-U1 Reader
Short Description:
The ACR39U-U1 Smart Card Reader is a compact device integrating advanced technology and modern design, featuring a USB Full Speed interface and up to 600 Kbps read/write speed. With high durability (supporting 200,000 card insertion cycles) and certifications like EMV Level 1 and PBOC, it meets rigorous security demands for e-banking and payment applications. Fully compliant with PC/SC and CCID standards, it supports Windows, Linux, macOS, and Android 3.1+, making it an ideal peripheral for smart card solutions
Characteristic
Physical
Characteristics | |
Dimensions
(mm) | 72.2 mm
(L) x 69.0 mm (W) x 14.5 mm (H) |
Weight
(g) | 65.0 g |
USB
Interface | |
Protocol | USB CCID |
Connector
Type | USB
Type-A |
Power
Source | USB port |
Speed | USB 2.0
Full Speed (12 Mbps) |
Cable
Length | 1.5 m
(Non-Detachable) |
Contact
Smart Card Interface | |
Number of
Slots | 1
Full-sized Card Slot |
Standard | ISO 7816
Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1;
Memory Card Support |
Others | Mykad
Card, CAC, PIV, J-LIS, SIPRNET Smart Cards |
Certifications/Compliance | |
Certifications/Compliance | Standards ·
USB CCID, PC/SC,
Microsoft® WHQL, EMVTM Level 1 (Contact), PBOC Level 1 (Contact), J-LIS, TAA Regulatory/
Environmental ·
CE, IEC/EN 62368,
FCC, VCCI, UKCA, RoHS, REACH, KCC, UL, BIS |
Device
Driver Operating System Support | |
Device
Driver Operating System Support | Windows®,
Linux®, macOS, Solaris™, Android™ |
Features
- USB Full Speed Interface
- Plug and Play – CCID support brings utmost mobility
- Smart Card Reader:
- Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
- Supports CAC
- Supports SIPRNET Card
- Supports J-LIS Card
- Supports microprocessor cards with T=0 and T=1 protocol
- Supports memory cards
- Supports PPS (Protocol and Parameters Selection)
- Features Short Circuit Protection
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Supports Android™ 3.1 and later1
- Compliant with the following standards:
- EN 60950/IEC 60950
- ISO 7816
- USB Full Speed
- EMV™ Level 1 (Contact)
- PC/SC
- CCID
- CE
- FCC
- WEEE
- RoHS 2
- REACH
- FIPS 201 (USA)
- TAA (USA)
- J-LIS (Japan)
- VCCI (Japan)
- PBOC (China)
- Microsoft® WHQL
Application
- E-Government
- E-Banking and e-Payment
- E-Healthcare
- Public Key Infrastructure
- Network Security
- Access Control
- Loyalty Program
The ACR39U-U1 Smart Card Reader integrates advanced technology and modern design. Contact us to know more details.
- Payment Method : TT , Paypal, and Irrevocable L/C at sight
- Port Of Shipment : Nanning Shenzhen Guangzhou China
- Delivery Detail : Delivery time depends on the order quantity
