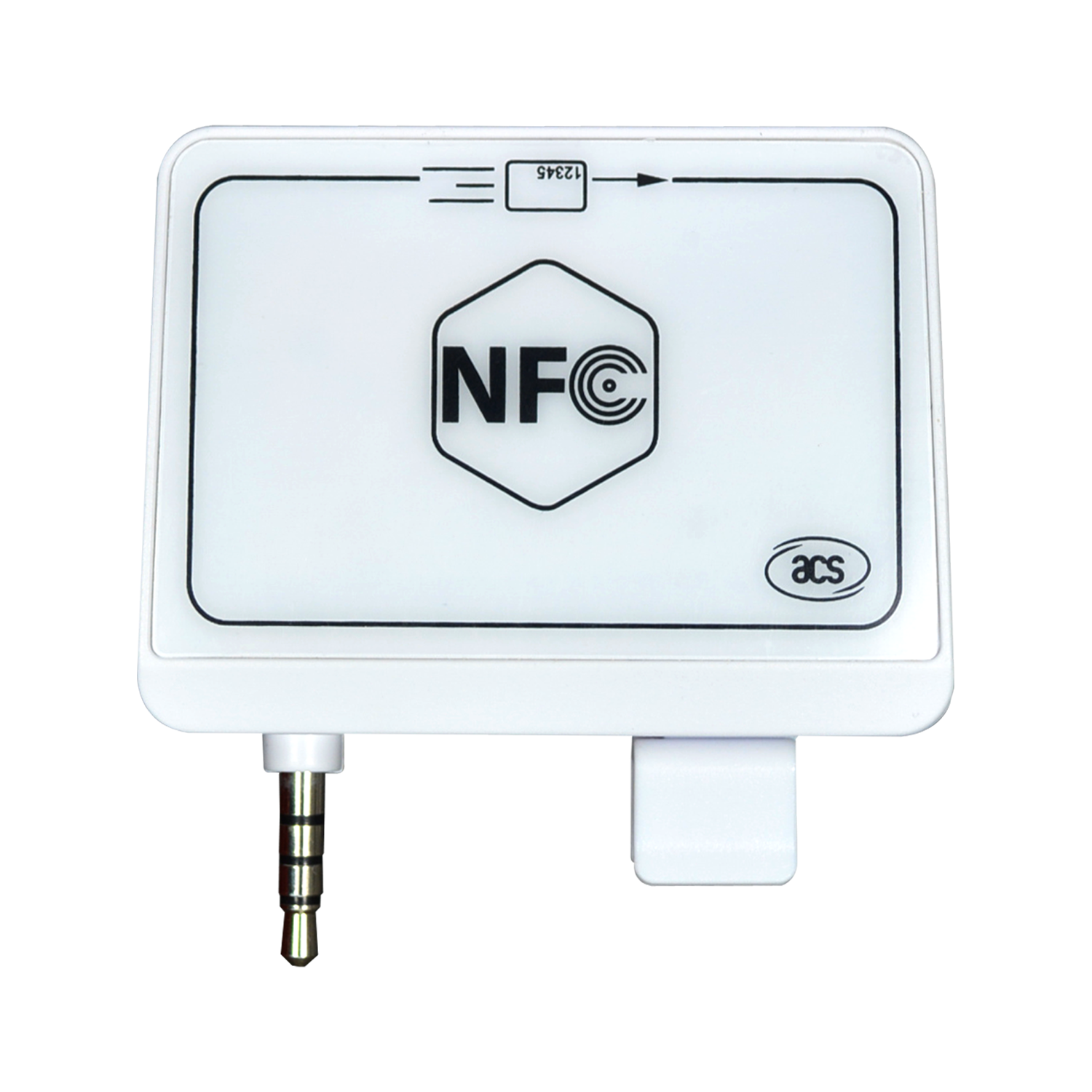

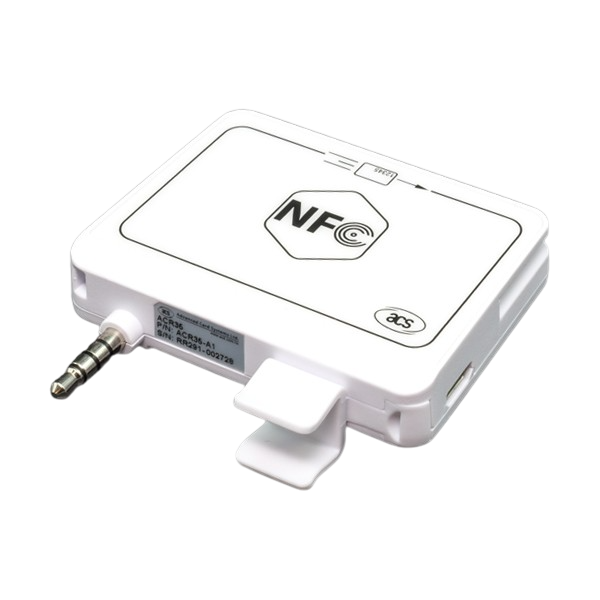

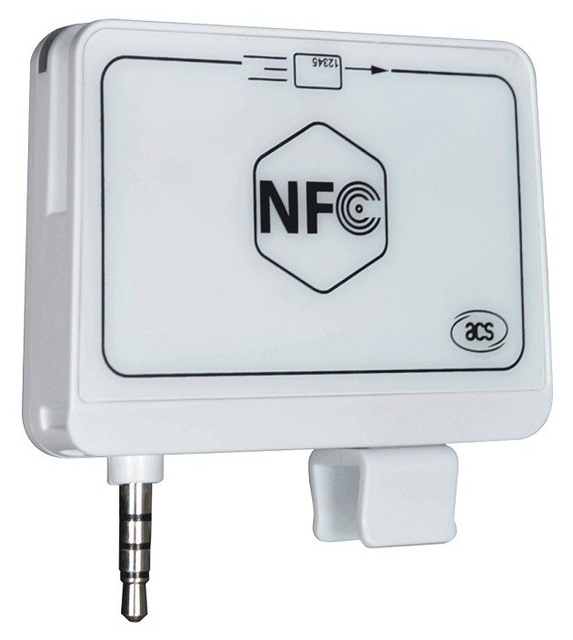

ACR 35 Reader
Short Description:
The ACR35 NFC Reader seamlessly captures magnetic card data via its integrated decoder and supports diverse contactless technologies including ISO14443 Parts 1-4, ISO 18092, Mifare variants, FeliCa, and NFC Tag Types 1-4. It securely transmits encrypted card information to smartphones or tablets through a standard 3.5mm audio interface, ensuring robust security for payment processing, access control, and identification applications. This compact reader delivers reliable performance and universal compatibility for efficient contactless transactions.
Characteristic
Power Supply
Battery Powered: 3.2V to 3.7V DC Lithium-ion Battery (Rechargeable through USB)
Operation Time: Approx.2hrs (Continuous operation)
Communication Interface
Type: Bi-directional Audio Jack Interface
Connector: 3.5 mm 4-pole Audio Jack
Speed: Max.2.6 Kbps
Magnetic Card Interface
Standard: ISO 7810/7811 Hi-Co and Low-Co Magnetic Cards
JIS 1 and JIS 2
Card Swipe Speed: Max.10 in/s
Card Swipe Cycles: Min.500,000
Contactless Smart Card Interface
Standard: ISO/EC18092 NFC ISO14443 Type A&B, MIFARE, FeliCa
Protocol: ISO 1443 T=CL for ISO14443-4 compliant cards and T=CL Emulation for
MIFARE Classic 1K/4K, ISO 18092, FeliCa and NFC tags
Operating Frequency: 13.56 MHz
Operating Distance: Up to 50 mm (Depending on tag type)
Smart Card Read/Write Speed: 106 Kbps, 212 Kbps, 424 Kbps
Physical Specifications
Dimensions: 60.0mm(L)x45.0 mm(W)x 13.3mm(H)
Color: White
Weight: 29 g (With battery)
Cable length, cord, connector: 1 m, Fixed (Detachable), USB A
Operating Conditions
Temperature: O℃-50℃
Humidity: Max.90% (Non-condensing)
Mean Time Between Failure: 300,000 hrs
Certifications/Compliance:
ISO14443, ISO/IEC18092, CE, FCC, VCCI, RoHS2, REACH
Device Driver Operating System Support:
Android"M2.0 and above, iOS 5.0 and above
Features
- 3.5 mm Audio Jack Interface
- Powered by a Lithium-ion battery (Rechargeable through USB cable)
- Smart Card Reader:
- Builtin antenna for contactless tag access, with reading distance of up to 50 mm (Depending on tag type)
- Supports ISO 14443 Part4 Type A and B cards
- Supports MIFARE
- Supports FeliCa
- Supports ISO 18092 Tags (NFC Tags)*
- Built-in anti-collision feature(Only one tag is accessed at anytime)
- NFC Support:
- Card reader/writer mode
- Magnetic Stripe Card Reader:
- Reads up to two tracks of card data
- Capable of bi-directional reading
- Supports AES-128 encryption algorithm
- Supports DUKPT Key Management System
- Supports ISO 7810/7811 magnetic cards
- Supports Hi-coercivity and Low-coercivity magnetic cards
- Supports JIS1 and JIS2
- Supports AndroidTM 2.0 and above**
- Supports iOS 5.0 and above**
- Compliant with the following standards:
- ISO 18092
- ISO 14443
- CE
- FCC
- VCCI
- RoHS 2
- REACH
Application
Mobile Banking:
ACR35 enables secure mobile banking transactions by reading magnetic stripe and contactless cards via its 3.5mm audio interface. Supporting ISO 14443/18092 standards and AES-128 encryption, it transforms smartphones into banking terminals for account management and fund transfers, especially on iOS/Android devices without built-in NFC.

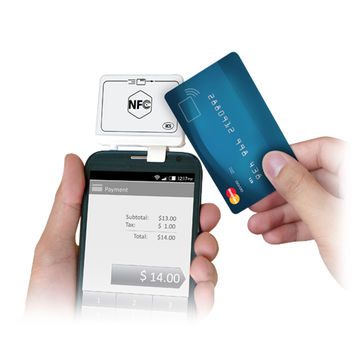

Mobile Payment:
This reader bridges legacy payment systems with modern mobile wallets. It reads Mifare, FeliCa, and NFC tags through audio jacks, ensuring DUKPT-secured transactions for retail, transportation, and peer-to-peer payments.
E-Healthcare:
In healthcare, ACR35 securely accesses patient records from ID cards or medical tags. Hospitals use it for instant verification of insurance cards, treatment histories, and prescriptions at point-of-care, streamlining workflows while maintaining HIPAA- compliant data encryption.
Loyalty Program:
Retailers integrate ACR35 to enhance loyalty programs. By reading membership cards (MIFARE/FeliCa) via smartphones, it instantly redeems points, issues digital coupons, and tracks consumer behavior—all secured by hardware-level encryption to prevent fraud.
The ACR25 Smart Card Reader delivers unmatched versatility and security for contactless (NFC) and contact-based transactions.
Contact us to know more details!
- Payment Method : TT , Paypal, and Irrevocable L/C at sight
- Port Of Shipment : Nanning Shenzhen Guangzhou China
- Delivery Detail : Delivery time depends on the order quantity
