ACR 31 Reader
Short Description:

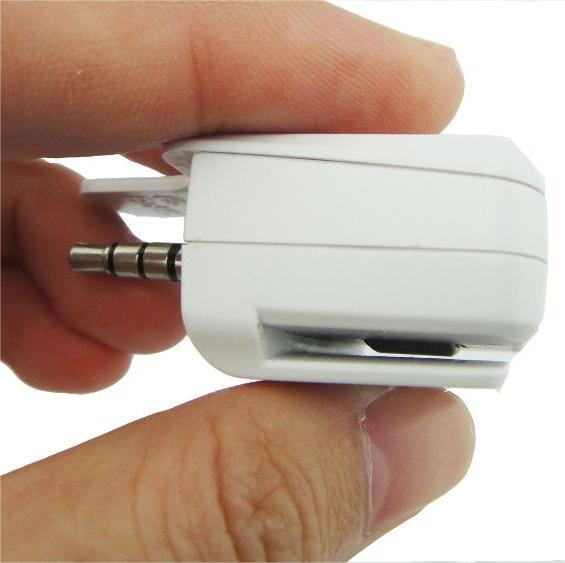

ACR31 Swipe Card Reader is a combination of card reader functionality and mobility, which enables you to access secure applications anytime, anywhere. As compact and stylish as it is, this card reader is capable of supporting demanding applications using magnetic stripe cards. It provides the perfect balance between reliable functionality and design aesthetics to meet your security needs in various application areas.
Characteristic
Physical Characteristics
Dimensions .................................... 39.68 mm (L) × 46.00 mm (W) × 18.00 mm (H)
Weight............................................ 20 g (With battery)
Color .............................................. White
Audio Jack Communication Interface
Protocol.......................................... Bi-directional Audio Jack Interface
Connector....................................... 3.5 mm 4-pole Audio Jack
Speed............................................. Max. 2.6 Kbps
Power Source................................. Battery-powered
Power Source
Battery............................................ CR2016
Supply Voltage............................... 2.3 V – 3 V DC
Operating Current .......................... 5 mA
Sleep Current ……......................... 0.4 μA
Battery Lifetime ……...................... 10,000 swipes
Magnetic Card Interface
Standard ........................................ ISO 7810/7811 Hi-Co and Low-Co Magnetic Cards
....................................................... JIS1 and JIS2
Card Swipe Speed ......................... Max. 10 in/s
Card Swipe Cycles......................... Min. 500,000
Operating Conditions
Temperature................................... 0 °C – 50 °C
Humidity ......................................... Max. 90% (Non-condensing)
MBTF ............................................. 500,000 hrs
Certifications/Compliance
CE, FCC, RoHS 2, REACH, VCCI (Japan)
Device Driver Operating System Support
Android™ 2.0 and later, iOS 5.0 and later
Features
- 3.5 mm Audio Jack Interface
- Power Source:
- Powered by a CR2016 battery
- Magnetic Stripe Card Reader:
- Reads up to two tracks of card data
- Capable of bi-directional reading
- Supports AES-128 encryption algorithm
- Supports DUKPT Key Management System
- Supports ISO 7810/7811 magnetic cards
- Supports Hi-coercivity and Low-coercivity magnetic cards
- Supports JIS1 and JIS2
- Supports Android™ 2.0 and later1
- Supports iOS 5.0 and later2
- Compliant with the following standards:
- CE
- FCC
- RoHS 2
- REACH
- VCCI (Japan)
Application
Mobile Payment Solutions:
Connects via 3.5mm audio jack to enable magnetic stripe card transactions for e-wallets, loyalty programs, and mobile banking apps.
Healthcare Systems:
Securely processes patient IDs and medical payments with DUKPT key management, compliant with healthcare data standards.
Retail & Membership Services:
Fast authentication for membership cards/coupons at POS terminals
Connects via 3.5mm audio jack to iOS/Android devices, supports magnetic stripe cards with AES-128 encryption. Perfect for mobile payments, healthcare systems & retail POS—limited time offer!
