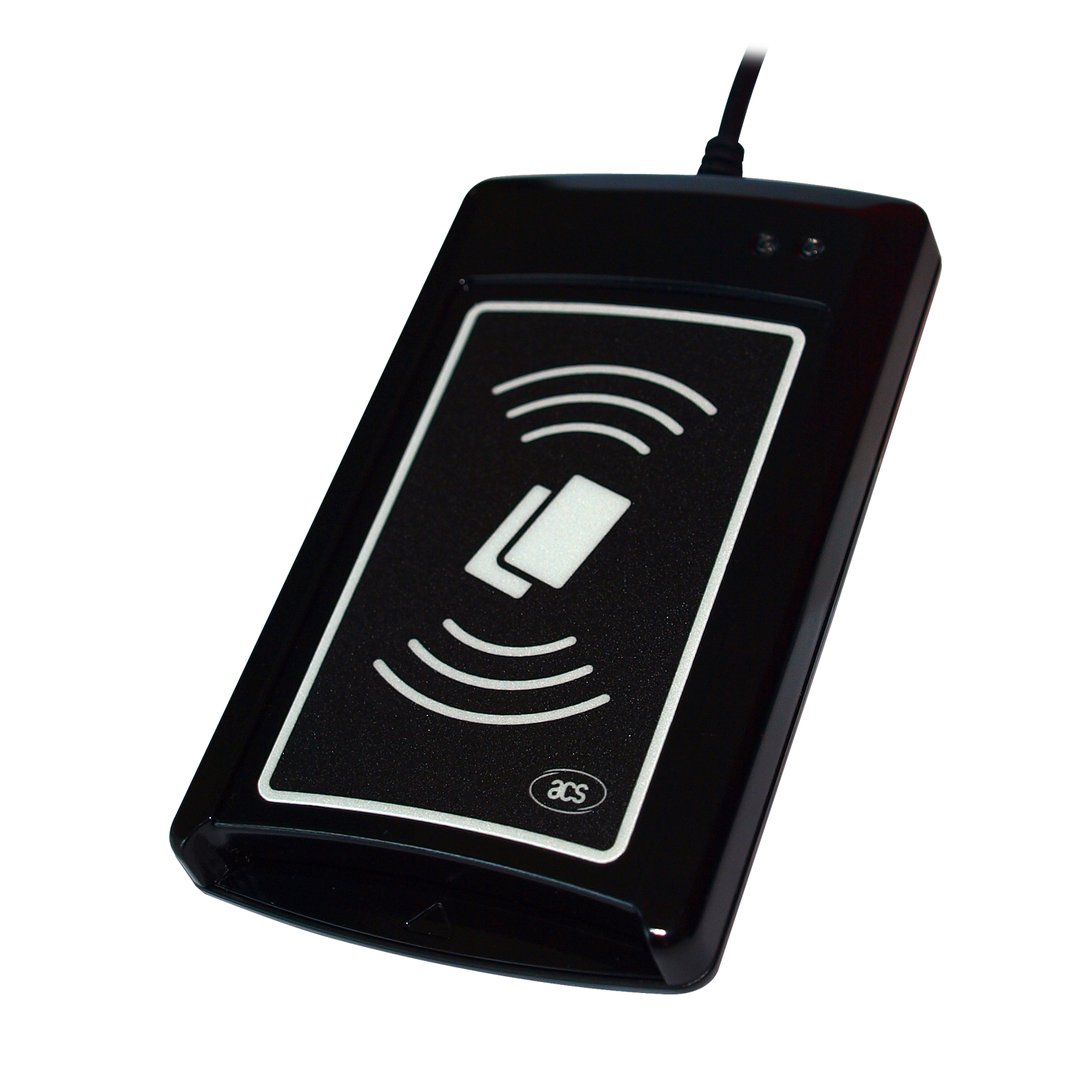

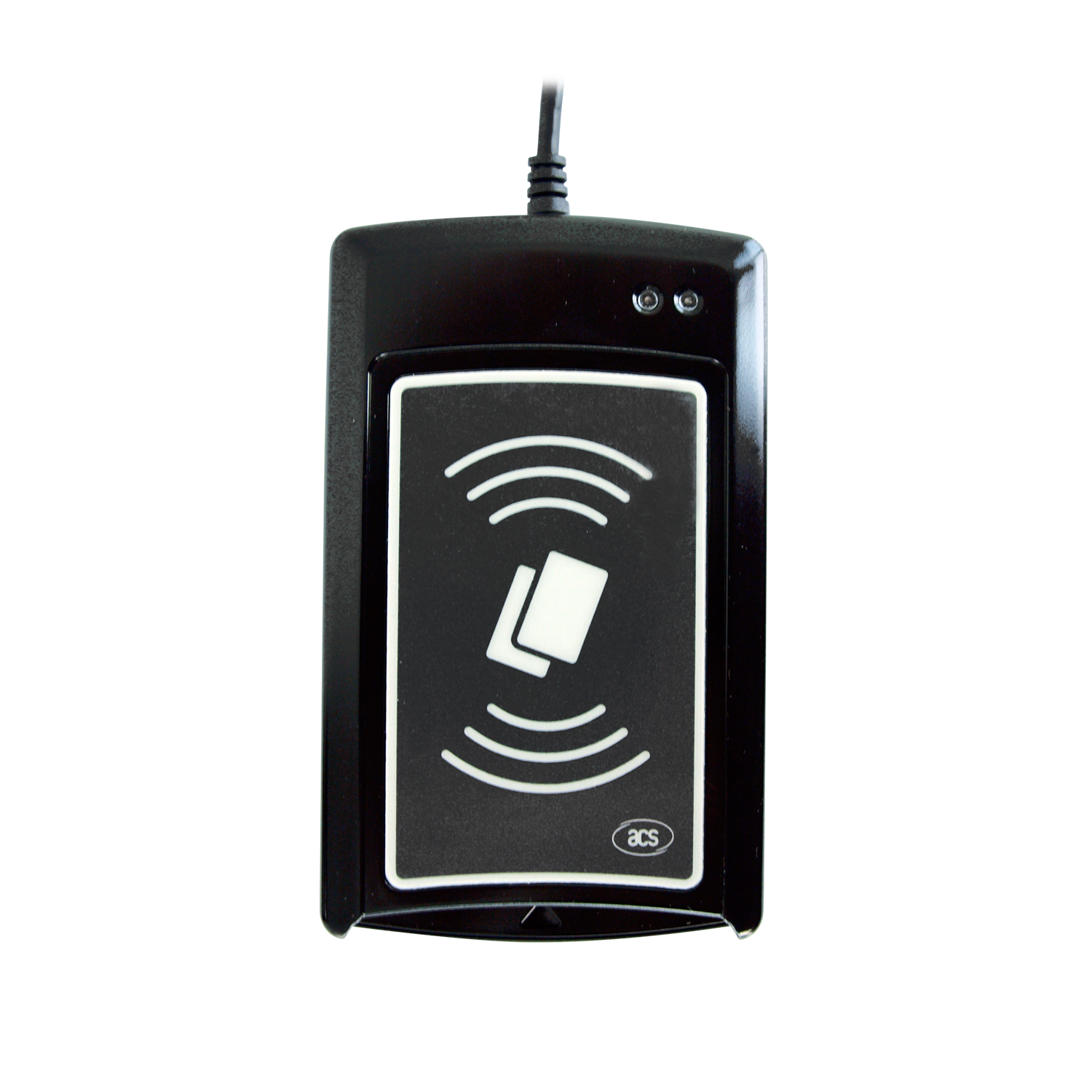

ACR 1281S-C1 Reader
Short Description:
The ACR1281S-C1 Dual Boost II is a dual-interface reader that accesses contact and contactless smart cards complying with ISO 7816 and ISO 14443 standards. It integrates separate applications for both technologies into one device and card. Using the RS-232 serial protocol for host communication, it offers high-speed contactless communication at up to 848 Kbps, making it suitable for demanding applications. The reader intelligently supports hybrid and combi cards, detecting contactless cards even when inserted in the contact slot. Additionally, it features a built-in ISO 7816-compliant Class A SAM (Secure Access Module) slot, which, when used with a SAM card, enhances security for both contact and contactless applications.
Characteristic
Physical Characteristics
Dimensions .................................... 120.5 mm (L) × 72.0 mm (W) × 20.4 mm (H)
Weight............................................ 150 g
Color .............................................. Black
Serial Host Interface
Protocol.......................................... Serial RS-232
Connector Type.............................. DB9 Connector
Power Source................................. From USB port
Speed............................................. 9.6 Kbps (default), 19.2 Kbps, 38.4 Kbps, 57.6 Kbps, 115.2 Kbps, 230.4 Kbps
Supply Voltage............................... 5 V
Supply Current .............................. Max. 200 mA

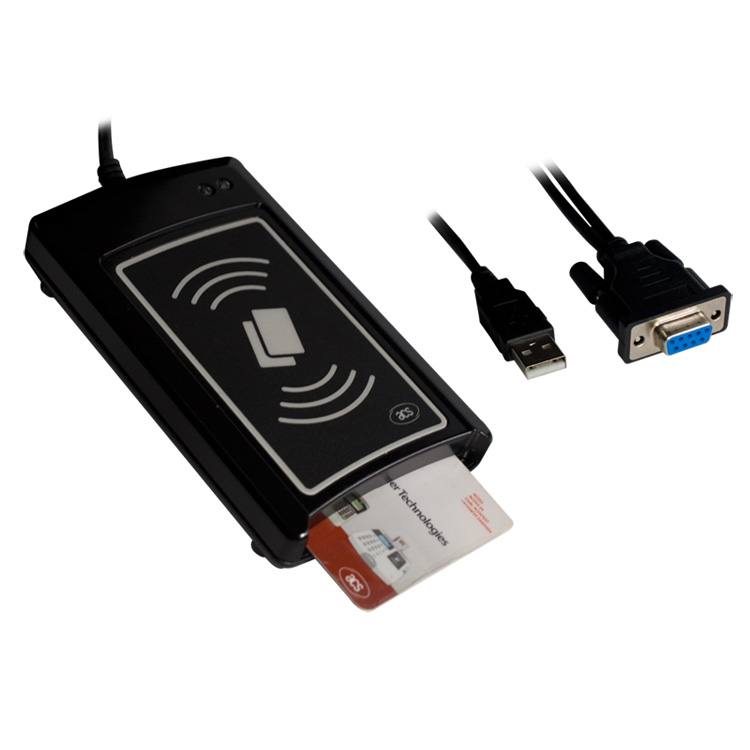

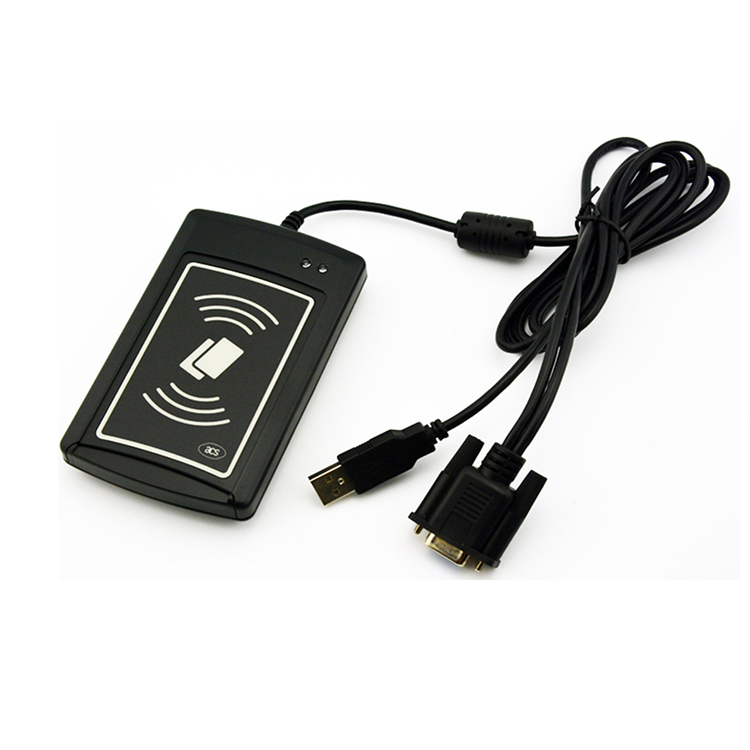

Cable Length.................................. 1.5 m, Fixed (DB9 + USB)
Contactless Smart Card Interface
Standard ........................................ ISO 14443 A and B Parts 1-4
Protocol.......................................... ISO 14443 T=CL for ISO 14443-4–compliant cards
....................................................... T=CL Emulation for MIFARE Classic
Operating Frequency ..................... 13.56 MHz
Operating Distance ........................ Up to 50 mm (depends on tag type)
Smart Card Read/Write Speed....... 106 Kbps, 212 Kbps, 424 Kbps, 848 Kbps
Antenna Size.................................. 65 mm × 60 mm
Contact Smart Card Interface
Number of Slots ............................. 1 Full-sized Card Slot
Standard ........................................ ISO 7816, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol.......................................... T=0; T=1
Supply Current ............................... Max. 60 mA
Smart Card Read/Write Speed....... 9.6 Kbps – 344 Kbps
Short Circuit Protection ................. (+5) V/GND on all pins
Clock Frequency ............................ 4.80 MHz
Card Connector.............................. ICC Slot: Landing
Card Insertion Cycles..................... Min. 200,000
SAM Card Interface
Number of Slots ............................. 1 Standard SIM-sized Card Slot
Standard ........................................ ISO 7816 Class A (5 V)
Protocol.......................................... T=0; T=1
Smart Card Read/Write Speed....... 9.6 Kbps – 420 Kbps
Card Connector Type..................... SAM Slot 0: Contact
Built-in Peripherals
LED................................................ 2 single-color: Red and Green
Buzzer............................................ Monotone
Other Feature
Firmware Upgrade ......................... Supported
Operating Conditions
Temperature .................................. 0 °C - 60 °C
Humidity ......................................... Max. 90% (non-condensing)
MTBF ............................................. 500,000 hrs
Certifications/Compliance
ISO 14443, ISO 7816, CE, FCC, RoHS 2
Device Driver Operating System Support
Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016
Linux®
Features
- Serial RS-232 Interface: Baud Rate = 9.6 Kbps (default), 19.2 Kbps, 38.4 Kbps,
- 57.6 Kbps, 115.2 Kbps, 230.4 Kbps
- USB interface for power supply
- CCID-like frame format (binary format)
- Smart Card Reader:
- Contactless Interface:
- Read/Write speed of up to 848 Kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series
- Built-in anti-collision feature (only one tag is accessed at any time)
- Supports extended APDU (max. 64 KB)
- Contact Card Interface:
- Supports ISO 7816 Class A, B and C (5 V, 3 V and 1.8 V) cards
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- SAM Interface:
- One SAM slot
- Supports ISO 7816 Class A SAM cards
- Built-in Peripherals:
- o Two user-controllable LEDs
- o User-controllable buzzer
- USB Firmware Upgradability
- Compliant with the following standards:
- ISO 14443
- ISO 7816
- CE
- FCC
- RoHS 2
Application
- E-Government
- E-Banking and e-Payment
- E-Healthcare
- Transportation
- Network Security
- Access Control
- Loyalty Program
ACS ACR1281S-C1 card reader is widely applicable for electronic payment, access control, healthcare & government scenarios.
