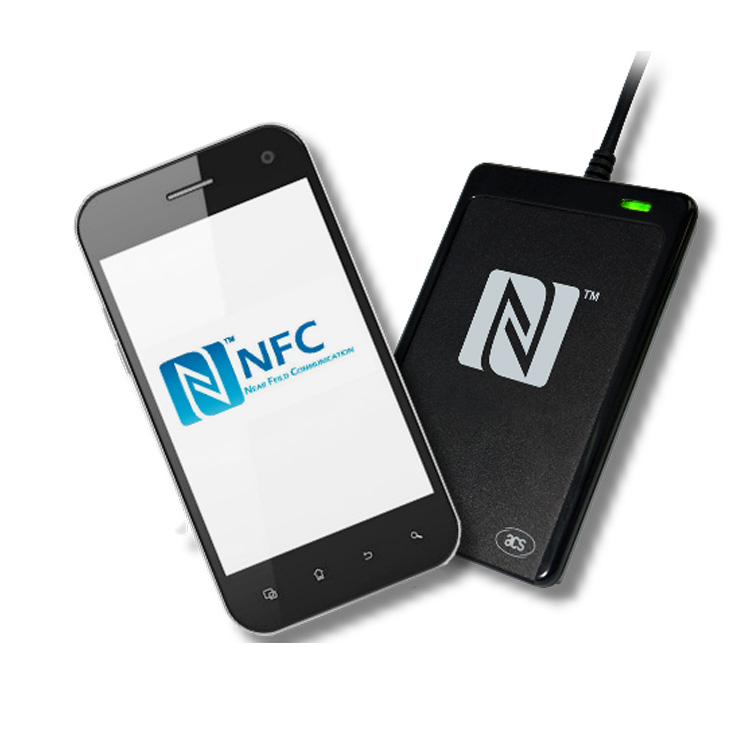

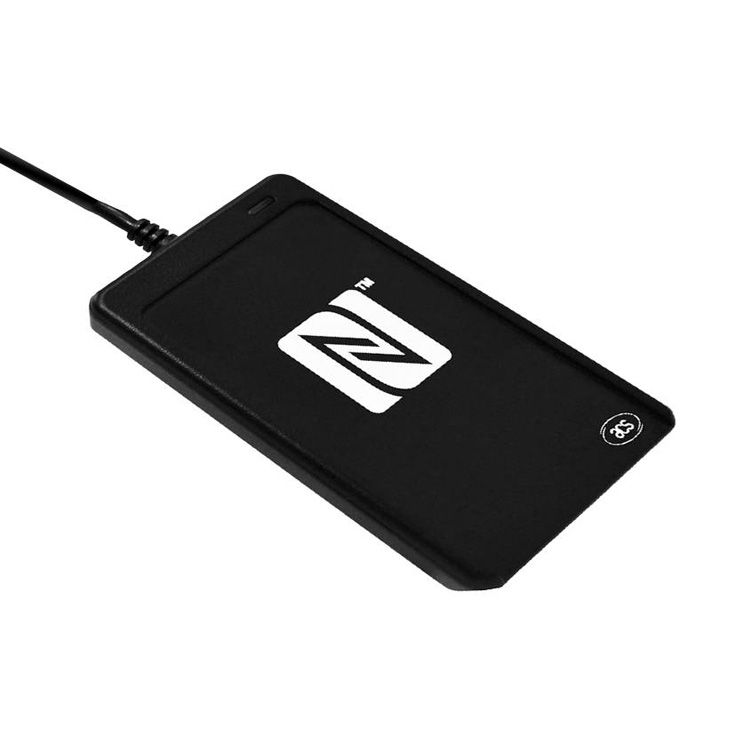

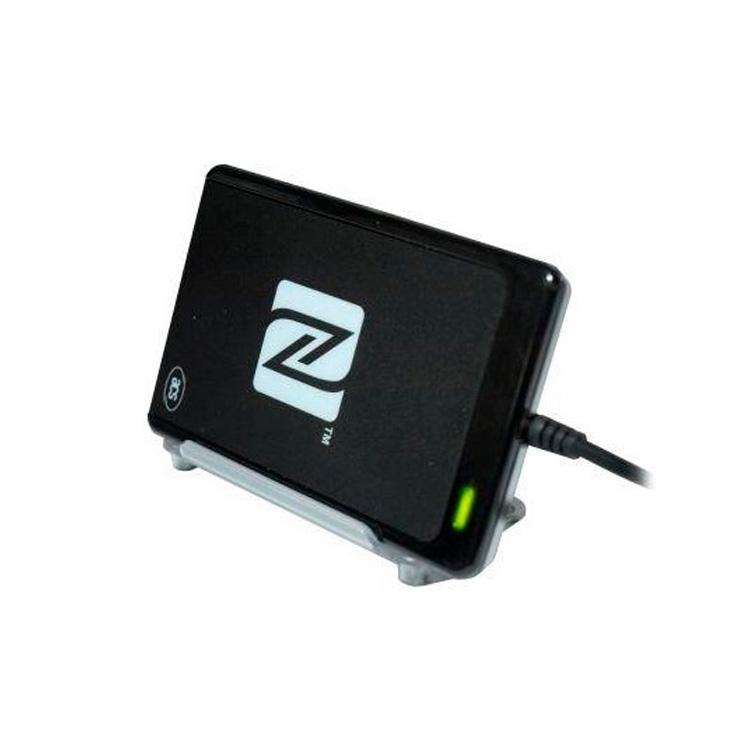

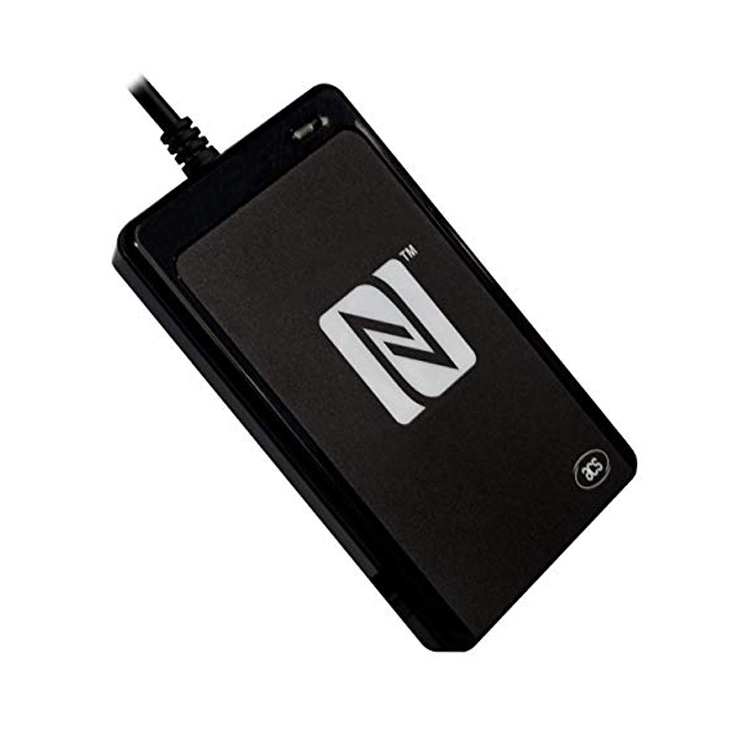

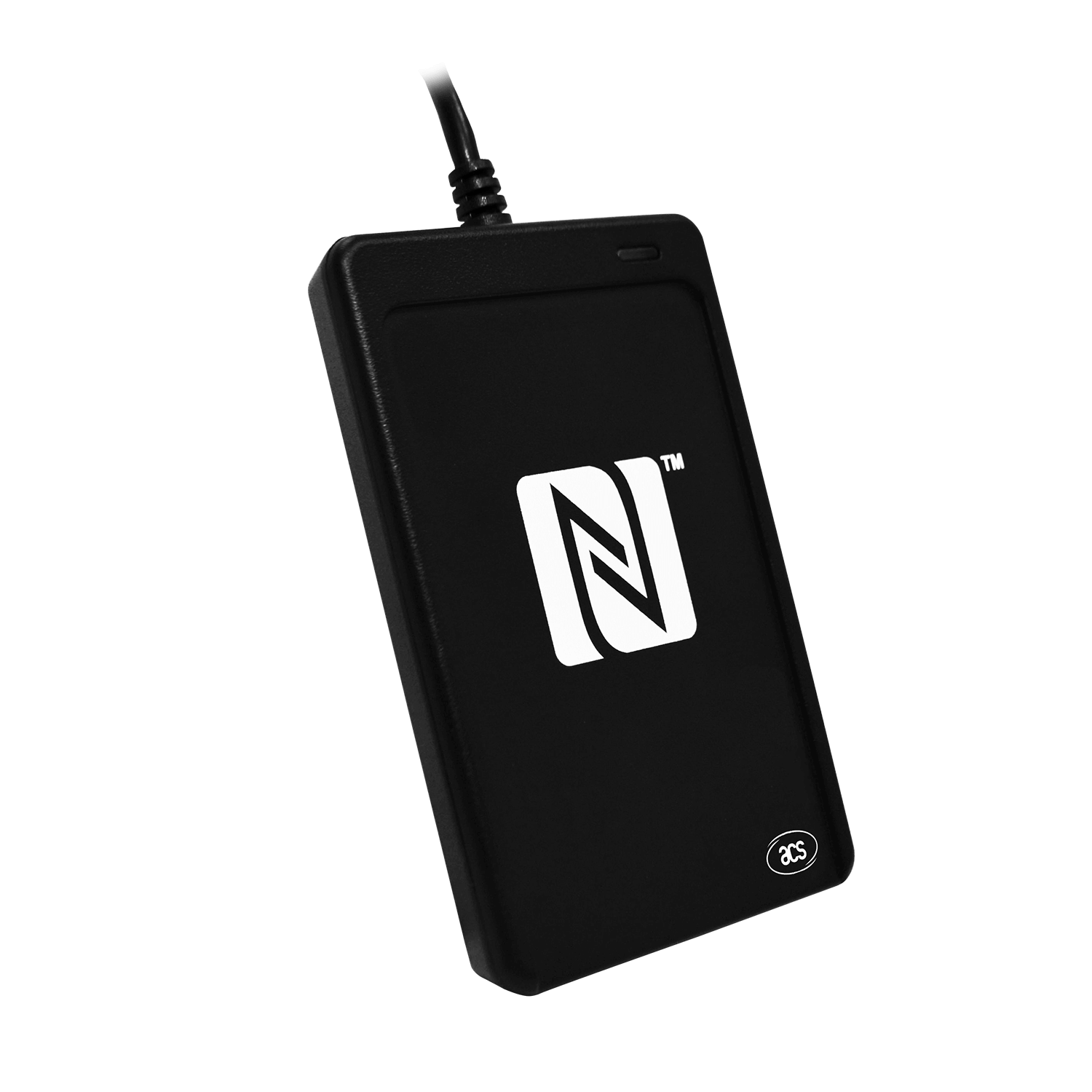

ACR 1252U Reader
Short Description:
The ACR1252U is an NFC Forum-certified PC-linked contactless smart card reader based on 13.56 MHz technology, supporting ISO 14443 Type A/B, MIFARE, FeliCa, ISO 18092 NFC tags, and other NFC devices. It features an ISO 7816-compliant SAM slot for key diversification and mutual authentication to enhance transaction security, and supports three NFC modes (reader, card emulation, peer-to-peer), making it ideal for applications like smart posters and mobile wallets. Fully compliant with PC/SC and CCID standards, it offers remote firmware upgrades, a 50 mm operating distance, and up to 424 Kbps read/write speed, widely applicable in e-government, payments, healthcare, and access control.
Characteristic
Dimensions .................................... 98.0 mm (L) × 65.0 mm (W) × 12.8 mm (H) Weight............................................ 81 g
Color .............................................. Matte Black Host Interface
Protocol.......................................... USB CCID
Connector Type.............................. Standard Type A
Power Source................................. From USB port
Speed............................................. USB Full Speed (12 Mbps)
Supply Voltage............................... 5 V
Supply Current .............................. Max. 200 mA
Cable Length.................................. 1 m, Fixed Card Interface
Standard ........................................ ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
Protocol.......................................... ISO 14443 T=CL for ISO 14443-4–compliant cards
....................................................... T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa and NFC tags
Operating Frequency ..................... 13.56 MHz
Operating Distance ........................ Up to 50 mm (depending on tag type)
Smart Card Read/Write Speed....... 106 Kbps, 212 Kbps, 424 Kbps
Antenna Size.................................. 50 mm × 40 mm
Number of Slot ............................... 1 Standard SIM-sized Card Slot
Standard ........................................ ISO 7816, Class A (5 V)
Protocol.......................................... T=0; T=1
Smart Card Read/Write Speed....... 9.6 Kbps – 215 Kbps
Card Connector Type..................... SAM Slot 0: Contact Peripherals
LED................................................ 1 bi-color: Red and Green
Buzzer............................................ Monotone
Firmware Upgrade ......................... Supported Application Programming Interface
PC-linked mode.............................. PC/SC
....................................................... CT-API (through wrapper on top of PC/SC)
Operating Conditions
Temperature................................... 0 C – 60 C
Humidity ......................................... Max. 90% (non-condensing)
MTBF ............................................. 500,000 hrs
Certifications/Compliance:
EN 60950/IEC 60950, ISO 18092, ISO 14443, ISO 7816 (SAM Slot), USB Full Speed, NFC Forum Certification, Felica Performance Certification, PC/SC, CCID, CE, FCC, RoHS 2, REACH
J-LIS (Japan), VCCI (Japan), MIC (Japan), KC (Korea), Microsoft® WHQL
Device Driver Operating System Support:
Windows® CE 5.0, Windows® CE 6.0, Windows® Embedded Compact 7, Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® Server 2003, Windows® Server 2003 R2, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® 2016, Linux®, Mac OS®, Solaris, Android™ 3.1 and later
Features
- USB Full Speed Interface
- CCID-compliant
- Smart Card Reader:
- Contactless Interface:
- Read/Write speed of up to 424 Kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm
- (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, FeliCa, and all
- four types of NFC (ISO/IEC 18092 tags)
- Built-in anti-collision feature (only one tag is accessed at any time)
- Supports extended APDU (max. 64 KB)
- NFC Support:
- Card reader/writer mode
- Peer-to-Peer mode
- Card Emulation mode
- o SAM Interface:
- One SAM Slot
- Supports ISO 7816-compliant Class A SAM cards
- Contactless Interface:
- Built-in Peripherals:
- User-controllable bi-color LED
- User-controllable buzzer
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- USB Firmware Upgradeability
- Supports Android™ 3.1 and later1
- Compliant with the following standards:
- EN 60950/IEC 60950
- ISO 18092
- ISO 14443
- ISO 7816 Class A (SAM Slot)
- NFC Forum Certification Mark
- Felica Performance Certification
- PC/SC
- CCID
- CE
- FCC
- RoHS 2
- REACH
- J-LIS (Japan)
- VCCI (Japan)
- MIC (Japan)
- KC (Korea)
- Microsoft® WHQL
Application
- Government
- E-Banking and e-Payment
- E-Healthcare
- Transportation
- Network Security
- Access Control
- Loyalty Program
- Smart Poster/URL Marketing
- P2P Communication
The ACR1252U is a versatile contactless reader certified by NFC Forum, supporting ISO 14443 A/B, MIFARE, FeliCa and all NFC device types. It features a SAM card slot for enhanced security, read/write speeds up to 424 Kbps, and compliance with PC/SC/CCID standards, making it ideal for electronic payments, access control, smart posters and more.
