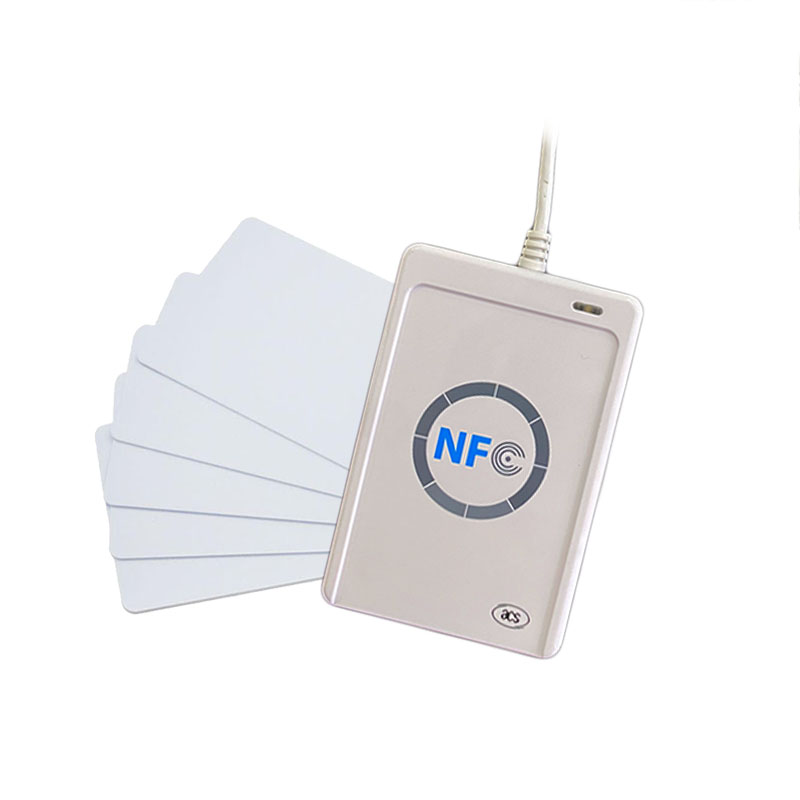

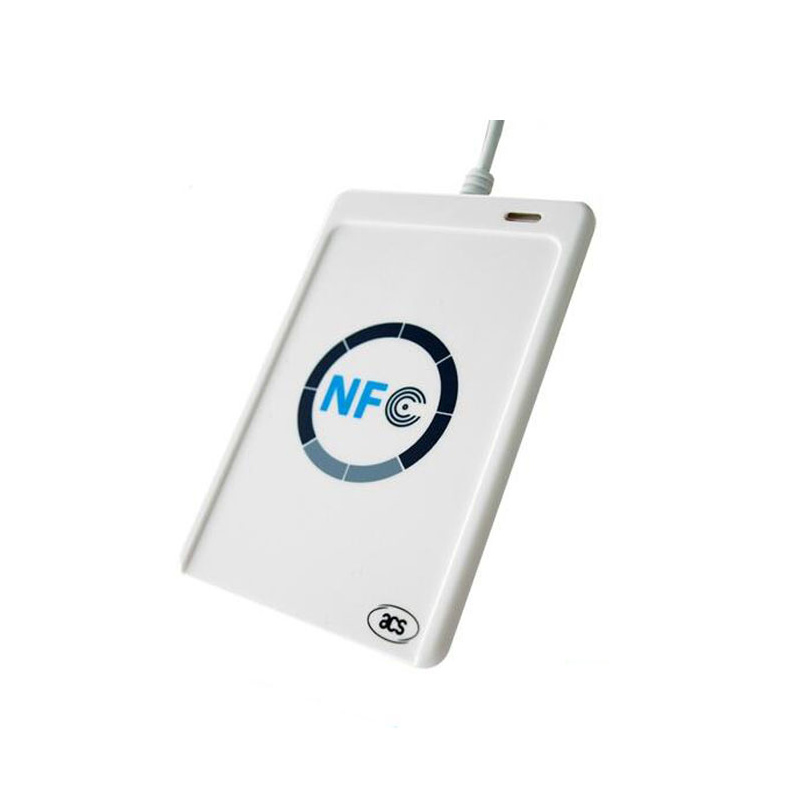

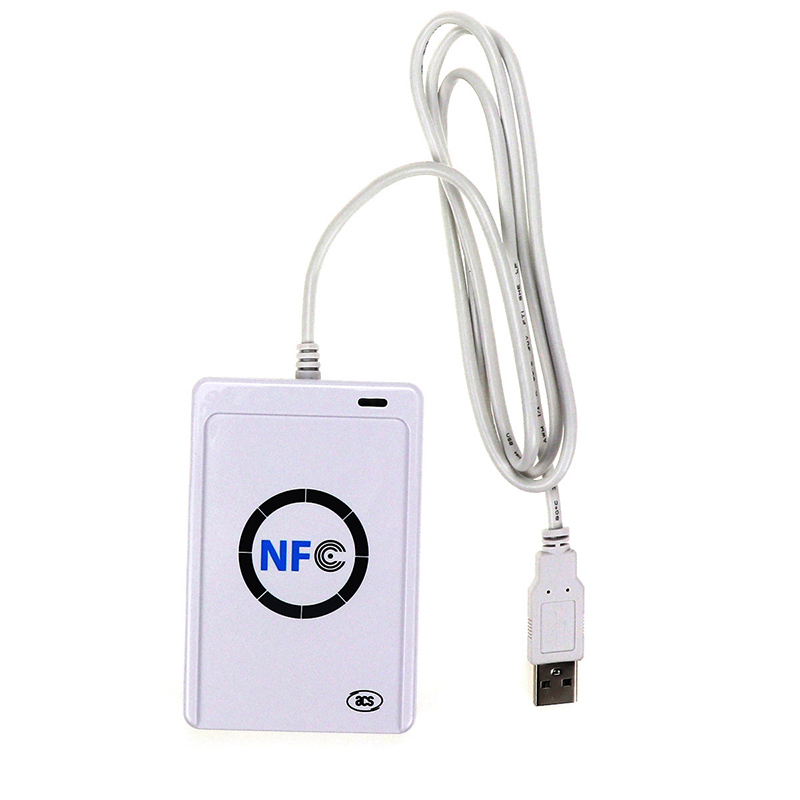

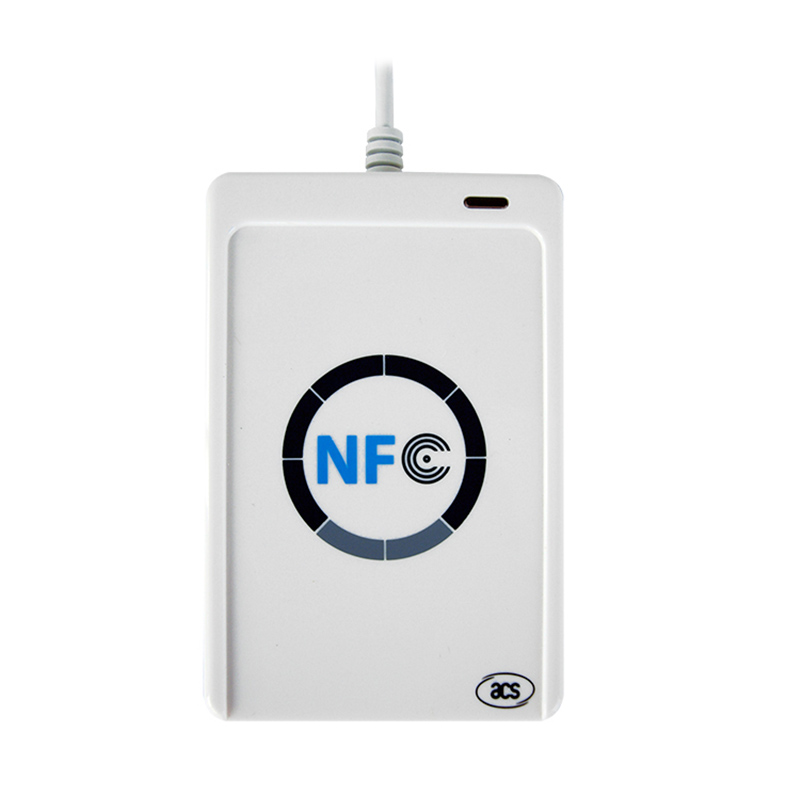

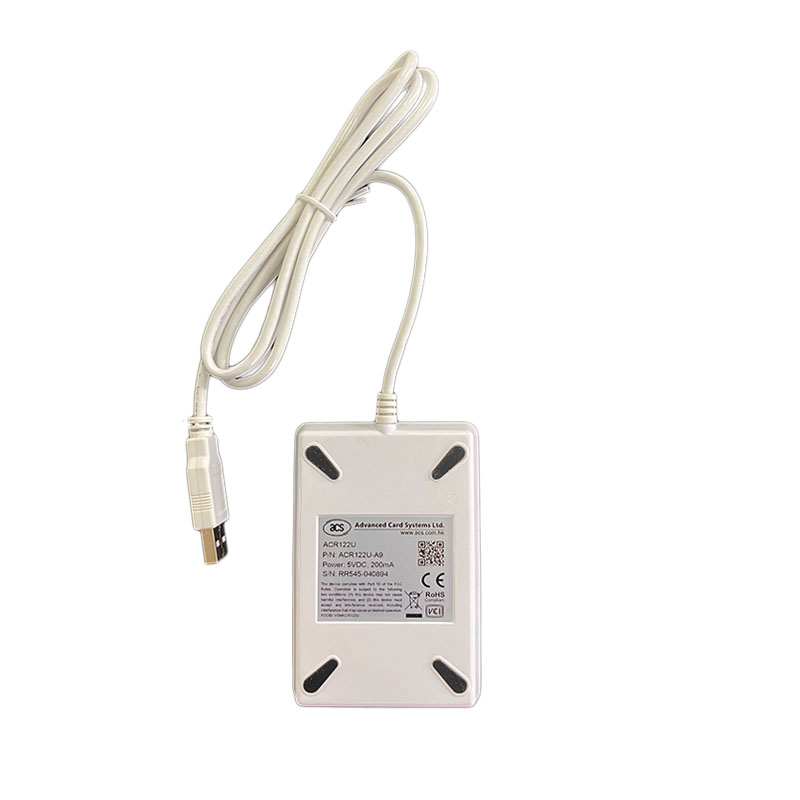

ACR 122U Reader
Short Description:
The ACR122U Smart Card Reader/Writer is a cutting-edge USB-powered device leveraging 13.56MHz technology to deliver seamless compatibility with ISO 14443 Type A/B, MIFARE®, FeliCa, and NFC tags. As the world’s first CCID and PC/SC-compliant reader, it supporting ultra-fast data transfer rates (up to 424 Kbps for NFC and 12 Mbps via USB). Its compact design and multi-protocol support make it ideal for applications like contactless payments, access control, attendance management, and public transit—streamlining operations with enterprise-grade reliability.
Characteristic
|
Name |
ACR122U Reader/Writer |
|
Working Frequency |
13.56mhz |
|
Standard |
ISO 14443 Type A & B, MIFARE, FeliCa,etc |
|
Material |
ABS |
|
Support tags |
13.56mhz MIFARE Classic, FeliCa and NFC Tags |
|
Power Source |
USB |
|
Operating Distance |
Up to 5cm (Depending on tag and reading environment) |
|
Color |
White |
|
LED |
Red and Green |
|
Operating Temperature |
0℃ ~ 50℃ |
|
Stock Temperature |
-10℃ ~50℃ |
|
Size |
98.0 mm (L) ×
65.0 mm (W) × 12.8
mm (H) |
|
Weight |
About 70g |
|
Package |
1pcs/box |
|
Application |
• E-Government • E-Banking and E-Payment • E-Healthcare • Transportation • Network Security • Access Control • Loyalty Program |
Features
Multi-Protocol Support:
Compatible with ISO 14443 A/B, Mifare (Classic 1K/4K/DESFire), FeliCa for versatile smart card interactions.
High-Speed Performance:
Operates at 13.56MHz with 424kbps data rate and 5cm read range, ideal for rapid mass tagging.
Standard Support:
CCID/PC/SC compliance can seamless.
Compact Design:
Ultra-portable (98.0 mm × 65.0 mm× 12.8 mm, 70g) with LED feedback, perfect for mobile or embedded systems.
Application
Access Control:
Streamline office attendance tracking and secure facility entry via RFID authentication.
Payment & Ticketing:
Enable transit top-ups and event ticket validation to reduce queue times.
IoT Integration:
Connect to Android devices via USB for network Security or self-service kiosk.
Boost security with ACR122U! Perfect for payments, access control & authentication—Contact us now for seamless integration!
- Payment Method : TT , Paypal, and Irrevocable L/C at sight
- Port Of Shipment : Nanning Shenzhen Guangzhou China
- Delivery Detail : Delivery time depends on the order quantity
