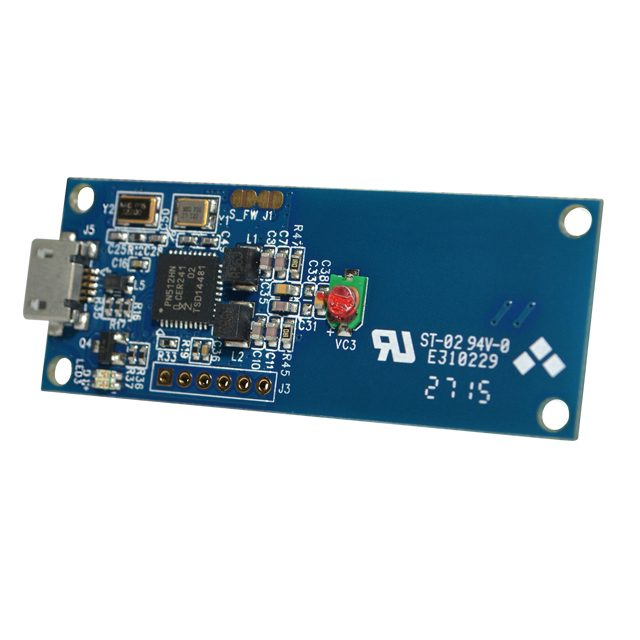

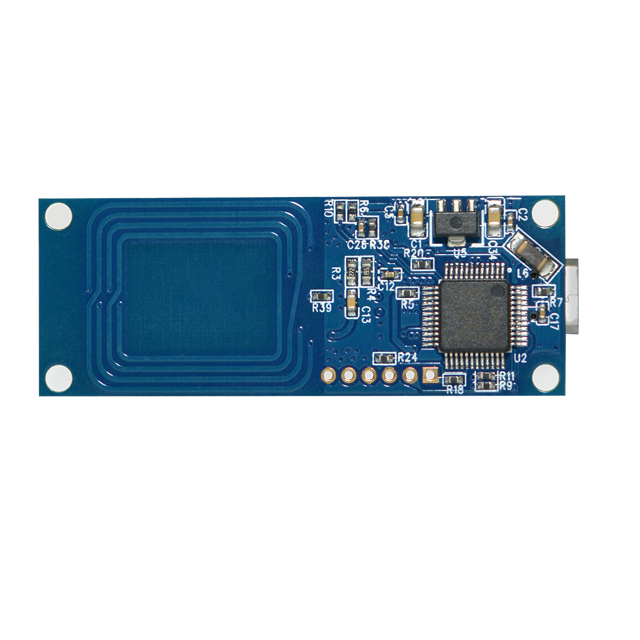

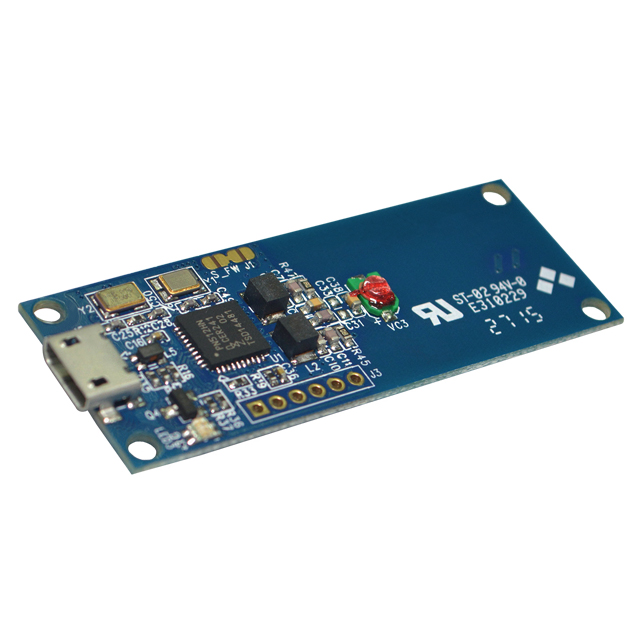

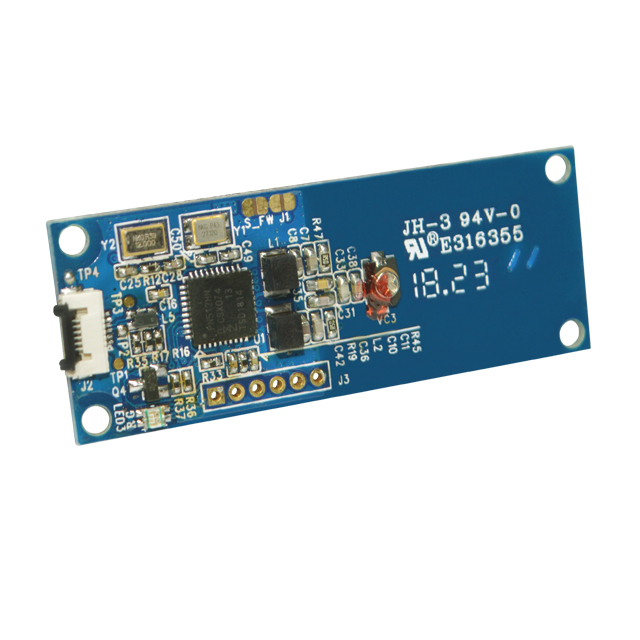

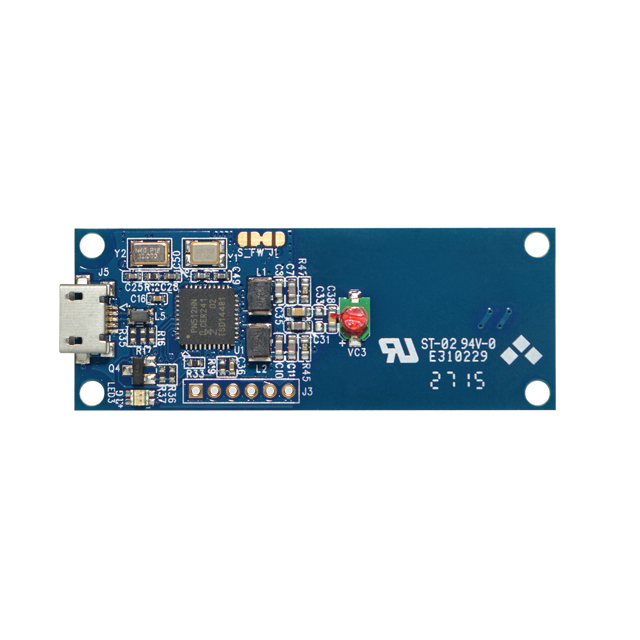

ACM 1252U-Z2 Module
Short Description:
The ACM1252U-Z2 Ultra-Compact NFC Reader Module leverages 13.56MHz contactless technology for seamless integration into embedded systems, measuring just 52.0×20.0×6.0mm. It supports ISO 14443 Type A/B cards, MIFARE®, FeliCa, and ISO 18092 NFC tags with 424Kbps data speed and 30mm operating range, featuring anti-collision algorithms to ensure single-tag access in multi-card scenarios. Certified by PC/SC , this module includes a detachable Micro-USB port for flexible deployment in space-constrained devices like kiosks, industrial controllers, and IoT gateways. Its firmware upgrade capability minimizes long-term maintenance efforts.
Characteristic
|
Physical Characteristics |
|
|
Dimensions (mm) |
52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H) |
|
Weight (g) |
3.65 g |
|
USB Interface |
|
|
Protocol |
USB CCID |
|
Connector Type |
Micro USB |
|
Power Source |
From USB port |
|
Speed |
USB Full Speed (12 Mbps) |
|
Cable Length |
1.0 m, Detachable (Upon Request) |
|
Contactless Smart Card Interface |
|
|
Standard |
ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®,
FeliCa |
|
Protocol |
ISO14443-4 Compliant Cards, T=CL |
|
Antenna |
20 mm x 22 mm |
|
Built-in Peripherals |
|
|
LED |
1 bi-color: Red and Green |
|
Other Features |
|
|
Firmware Upgrade |
Supported |
|
Certifications/Compliance |
|
|
Certifications/Compliance |
ISO 14443 |
|
Device Driver Operating System Support |
|
|
Device Driver Operating System Support |
Windows® |
Features
- USB 2.0 Full Speed Interface
- CCID Compliance
- Contactless Card Support:
- Read/write speed of up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards, MIFARE®, FeliCa and all four types of NFC (ISO 18092 tags)
- Built-in anti-collision feature (only one tag is accessed at any time)
- Application Programming Interface
- Supports PC/SC
- USB Firmware Upgradability
Application
E-Government Solutions: Public service platforms, citizen portals, inter-departmental data collaboration.
Banking & Secure Payment: Smart transaction terminals, cross-border payment security, AES-128 encryption.
E-Healthcare Services: Patient ID verification, medical billing systems, EHR integration.
Network Security: Multi-factor authentication, end-to-end encryption, fraud detection.
Smart Access Control: Biometric recognition, permission hierarchy management.
E-Purse & Loyalty: Point redemption, prepaid card management, user analytics.
Intelligent Transportation: Public transit payments, vehicle identification, real-time traffic data.
Buy ACM1252U-Z2 Ultra-Compact NFC Reader Now! 13.56MHz ISO 14443 A/B/MIFARE® support, detachable Micro-USB for embedded systems.
- Payment Method : TT , Paypal, and Irrevocable L/C at sight
- Port Of Shipment : Nanning Shenzhen Guangzhou China
- Delivery Detail : Delivery time depends on the order quantity
